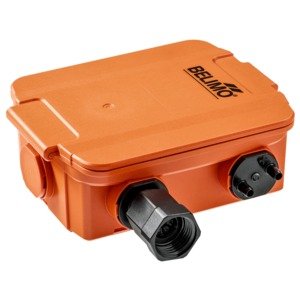

Belimo 22ADP-584 Diff Air Pressure Sensor 2500 MULT

Product Description

The Belimo 22ADP-584 is a differential air pressure sensor designed for precise measurement in duct applications. This sensor measures a range of differential pressures, making it ideal for HVAC systems. Its durable construction ensures reliable performance in demanding environments.

• Application focused on duct systems.
• Wide measuring range from -100 to 2500 Pa.
• Multiple output signals including 0 to 5 volts and 4 to 20 mA.

Product Highlights

Efficiently monitors air pressure, supporting effective HVAC operation. The sensor is built to withstand exposure to various environmental conditions.

Product Information

Standard Information

• Brand: Belimo
• MPN: 22ADP-584

Technical Specifications

• Application: Duct
• Sensor Type: Pressure
• Product Type: Sensor
• Mounting Type: Single Point
• Output Signal: 0...5V, 0...10V, 4...20mA
• Voltage AC/DC: AC/DC 24V
• Measured Values: Differential pressure
• Degree of Protection: IP65 NEMA 4X
• Electrical Connection: Terminals
• Measuring Range Pressure: -100...2500 Pa
