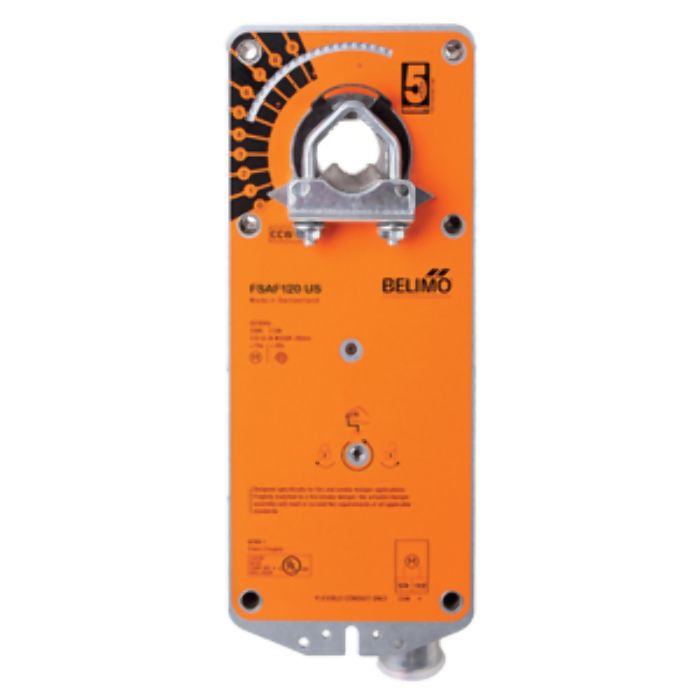

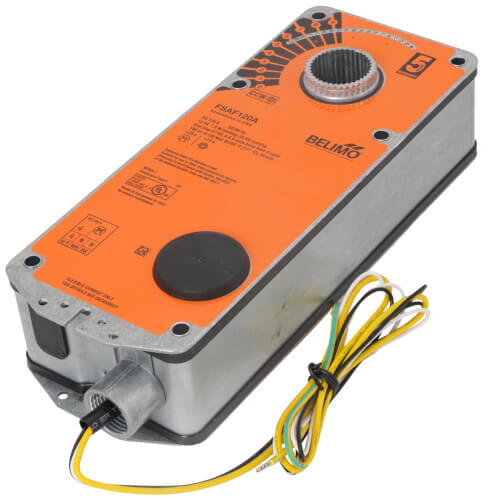

Belimo FSAF120A Fire And Smoke Actuator 180 in-lb 120 VAC

Product Description

The Belimo FSAF120A Fire and Smoke Actuator operates at 120 VAC and provides a torque of 180 in-lb. It is designed for reliable operation in HVAC systems for fire and smoke applications. The actuator features a spring return system that ensures consistent torque whether power is applied or not. This design is essential for fail-safe applications, ensuring tight shut-off when needed.

• Reliable spring return operation for fail-safe applications
• Compatible with UL555S rated dampers
• Constant torque delivery with or without power

Product Highlights

The FSAF120A actuator is crucial for maintaining safety and performance in HVAC systems, providing a mechanical spring return capability for effective operation.

Product Information

Standard Information

• Brand: Belimo
• MPN: FSAF120A

Technical Specifications

• Power Consumption: 28 W Running, 10 W Holding
• Torque: 180 lb-in
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable with 1/2 in. Conduit Connector
• Housing: NEMA 1, IP40
• Running Time: Less than 25 Seconds (motor), Less than 15 Seconds (spring)
• Weight: 6.88 lbs
• Dimensions: 4.45 in x 11.3 in x 3.55 in
