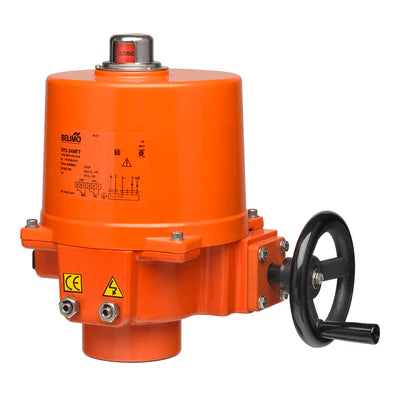

Belimo SY4-110 Valve Actuator Non-Spg 120V On/Off SW NEMA 4H

Product Description

The Belimo SY4-110 valve actuator offers reliable performance for various HVAC and industrial applications. Designed for non-spring return and on/off control, it operates on 120V and is built to withstand harsh conditions, making it a suitable choice for demanding environments.

• Non-spring return actuator
• Operates on 120V with on/off control
• Meets IP66/67 and NEMA 4X standards

Product Highlights

This actuator is ideal for HVAC systems and commercial applications requiring stringent control and protection standards. The SY4-110 provides consistent performance and easy integration with existing systems.

Product Information

Standard Information

• Brand: Belimo
• Model: SY4-110

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 90 degrees
• ANSI Class: Consistent with 125
• Auxiliary Switches: 2 x SPDT
• Control Type: Floating/3-point
• Controllable Flow Range: 90-degree rotation
• Cv: 5340
• Degree of Protection: IP66/67 NEMA 4X UL Enclosure Type 4X
• Electrical Connection: Terminals
• End Connection: Lug types
• End Fitting: Flange
• Fluid: Potable water
• Manual Override: Hand wheel
• Pattern: 2-way
• Pressure Independent: No
• Product Type: Combo
• Running Time (Motor): 19 seconds
• Valve Size: 10 inches (250 mm)
• Voltage AC/DC: AC 120V
