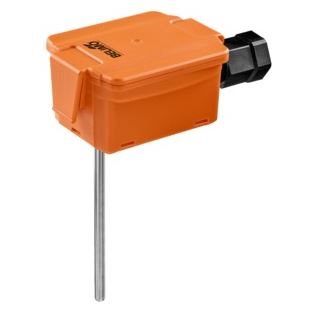

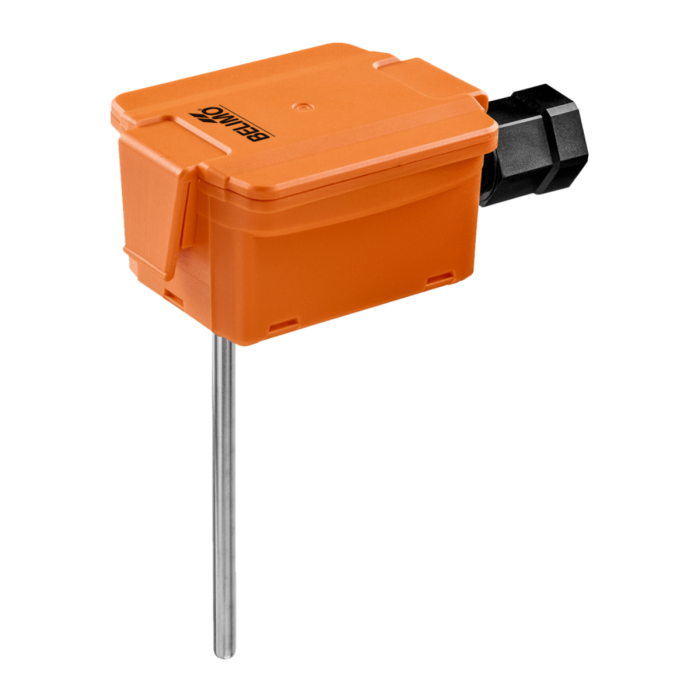

Belimo 01DT-5MP Duct Temperature Sensor NTC10kP 8 in.

Product Description

The Belimo 01DT-5MP is a duct temperature sensor designed for accurate temperature measurement in HVAC systems. It features a robust design for both duct and immersion applications. The sensor comes with an eight-inch probe and is suitable for NTC10k type III output signal use.

• Temperature range: -60 to 300°F
• NEMA 4X rated for outdoor use
• Includes mounting clip and conduit adaptor

Product Highlights

This duct temperature sensor is ideal for HVAC applications where precise temperature control is necessary. It offers reliable performance in various environmental conditions.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 01DT-5MP

Technical Specifications

• Probe Length: 8 inches (200 mm)
• Mounting Type: Duct mount, immersion
• Enclosure Rating: NEMA 4X, IP65
• Output Signal: NTC10k3
• Measured Values: Temperature
• Electrical Connection: Terminals
• Temperature Sensor Type: 10K Type III
• Configuration: Duct, immersion
