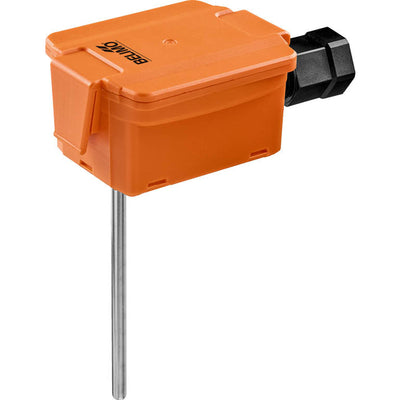

Belimo 01DT-5ML Duct Temp Sensor NTC10kP 100x6

Product Description

The Belimo 01DT-5ML is a duct temperature sensor designed for reliable temperature measurement. This sensor has an NTC10k3 output signal. It is used in various applications including duct and pipe temperature monitoring. The sensor can operate in a temperature range of minus sixty to three hundred degrees Fahrenheit which is equivalent to minus fifty to one hundred fifty degrees Celsius.

• Suitable for duct and pipe applications
• IP65 NEMA 4X rated for moisture and dust protection
• Probe length measures four inches (one hundred millimeters)

Product Highlights

This sensor is essential in HVAC systems for accurate temperature control.

Product Information

Standard Information

• Brand: Belimo
• MPN: 01DT-5ML

Technical Specifications

• Application: Duct, Pipe
• Degree of Protection: IP65 NEMA 4X
• Electrical Connection: terminals
• Measured Values: Temperature
• Measuring Range Temperature: -60...300B0F [-50...150B0C]
• Mounting Type: Single Point, Immersion
• Output Signal: NTC10k3 (Precon)
• Probe Length: 4 inches [100 mm]
• Product Type: Sensor
• Sensor Type: Temperature
