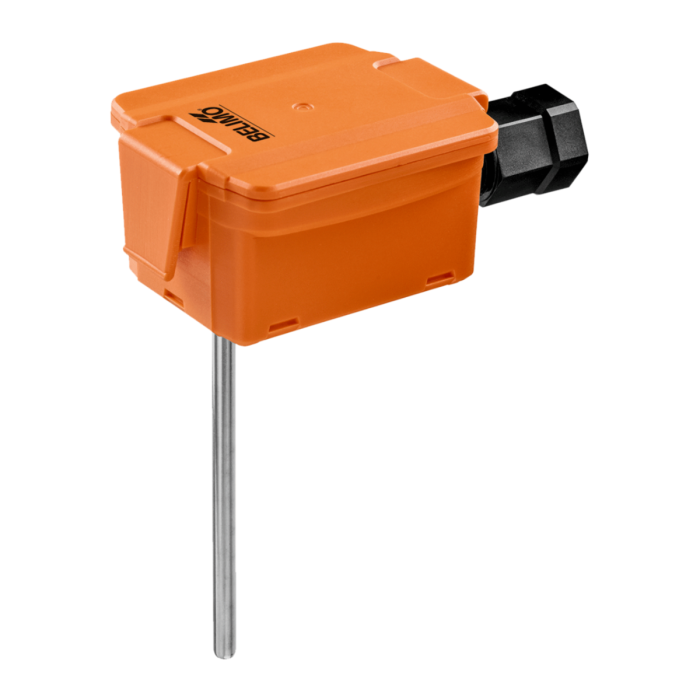

Belimo 01DT-5LR Duct Temperature Sensor 10K Type II 12 in.

Product Description

The Belimo 01DT-5LR is a duct temperature sensor designed for HVAC systems. It provides accurate temperature readings in duct applications with a 10K NTC Type II output signal. This sensor features a NEMA 4X rated enclosure for durability. It is also adaptable for pipe applications when used with a suitable thermowell, expanding its versatility.

• Measures temperature in duct and pipe applications
• NEMA 4X enclosure rating
• Compatible with thermowells for immersion use

Product Highlights

Reliable duct temperature sensing for HVAC systems with robust construction.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 01DT-5LR

Technical Specifications

• Application: Duct/Pipe
• Sensor Type: Temperature
• Probe Length: 12 inches (300 mm)
• Output Signal: NTC10k (10k2)
• Measured Values: Temperature
• Degree of Protection: IP65 NEMA 4X
• Electrical Connection: Terminals
• Measuring Range Temperature: -60 to 300°F (-50 to 150°C)
• Mounting Type: Single Point, Immersion
