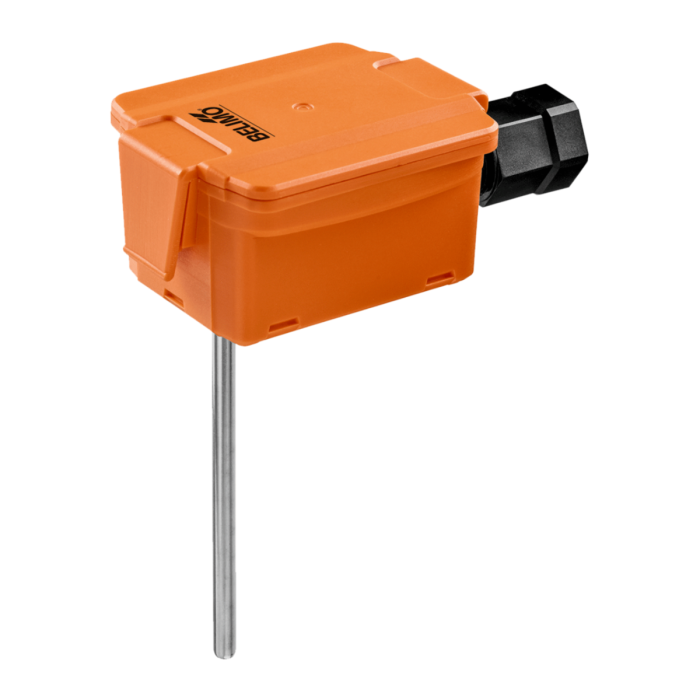

Belimo 01DT-5LH Duct Temperature Sensor, 2 in.

Product Description

The Belimo 01DT-5LH is a duct temperature sensor designed for HVAC applications. This sensor operates with a 10K NTC Type II output signal and is housed in a NEMA 4X rated enclosure, making it suitable for diverse environmental conditions.

• Measuring temperature in duct applications
• Compatible with stainless steel or brass thermowells for pipe applications
• Includes a conduit adaptor for easy installation

Product Highlights

This sensor is effective for monitoring temperature in ductwork, ensuring optimal HVAC performance.

Product Information

Standard Information

• Brand: Belimo
• MPN: 01DT-5LH

Technical Specifications

• Application: Duct, Pipe
• Temperature Sensor Type: 10K Type II
• Measuring Range Temperature: -60 to 300°F [-50 to 150°C]
• Probe Length: 2 inches [50 mm]
• Degree of Protection: IP65 NEMA 4X
• Electrical Connection: Terminals
• Output Signal: NTC10k (10k2)
• Mounting Type: Duct Mount, Well Mount
