Belimo 01DT-5ET Duct Temperature Sensor Ni1000 18 in.

Product Description

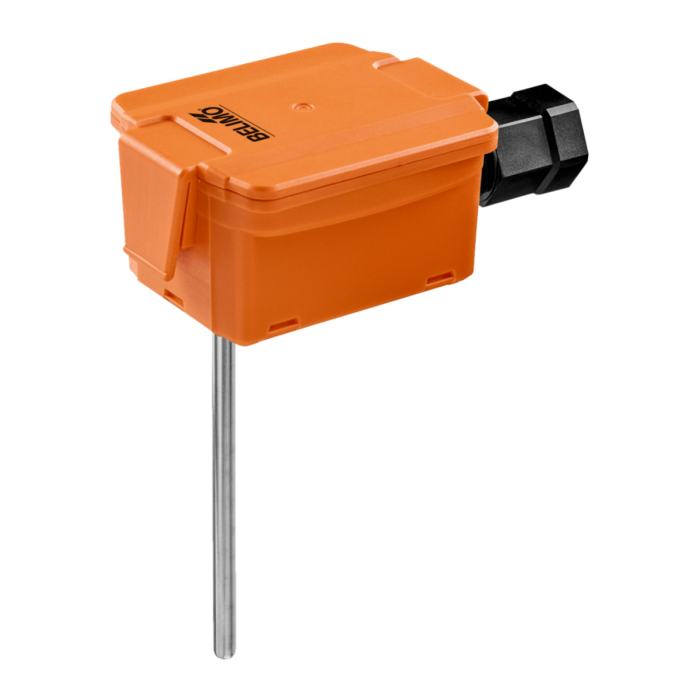

The Belimo 01DT-5ET Duct Temperature Sensor is designed for accurate temperature measurements in duct and immersion applications. It features a Ni1000 output signal, which is compatible with various control systems including Johnson Controls. The sensor is housed in a NEMA 4X rated enclosure, suitable for indoor and outdoor installations.

• Temperature measurement for duct applications
• Compatible with thermowells for pipe applications
• Includes conduit adapter for easy installation

Product Highlights

This sensor is ideal for HVAC applications, ensuring precise temperature monitoring.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 01DT-5ET

Technical Specifications

• Type: Immersion/Duct sensor
• Sensor Type: 1K Nickel
• Output Signal: Ni1000 (JCI)
• Electrical Connection: terminals
• Measuring Range Temperature: -60 to 320°F
• Probe Length: 18 inches (450 mm)
• Degree of Protection: IP65 NEMA 4X
• Mounting Type: Single Point, Immersion
