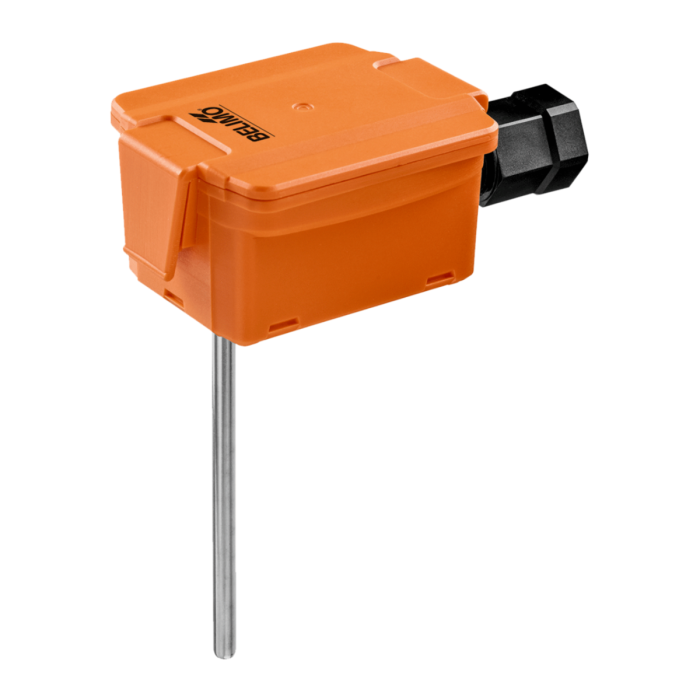

Belimo 01DT-5ER Duct Temperature Sensor Ni1000 12 in.

Product Description

The Belimo 01DT-5ER is a duct temperature sensor designed for measuring temperature in duct applications. This sensor features a Ni1000 output signal and is equipped with a NEMA 4X rated enclosure, making it suitable for various HVAC environments.

• Ideal for duct and pipe applications
• Includes a removable spring-loaded terminal block
• Probe length of twelve inches

Product Highlights

This product is suitable for use in both duct and immersion configurations. It provides reliable temperature monitoring with a measuring range of negative sixty degrees to three hundred twenty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 01DT-5ER

Technical Specifications

• Mounting Type: Duct Mount, Well Mount
• Enclosure Rating: NEMA 4X
• Probe Lead: Eleven to fifteen inches
• Configuration: Duct, Immersion
• Sensors Application: Temperature
• Temperature Sensor Type: 1K Nickel
• Measuring Range: -60 to 320 degrees Fahrenheit
• Output Signal: Ni1000 (JCI)
