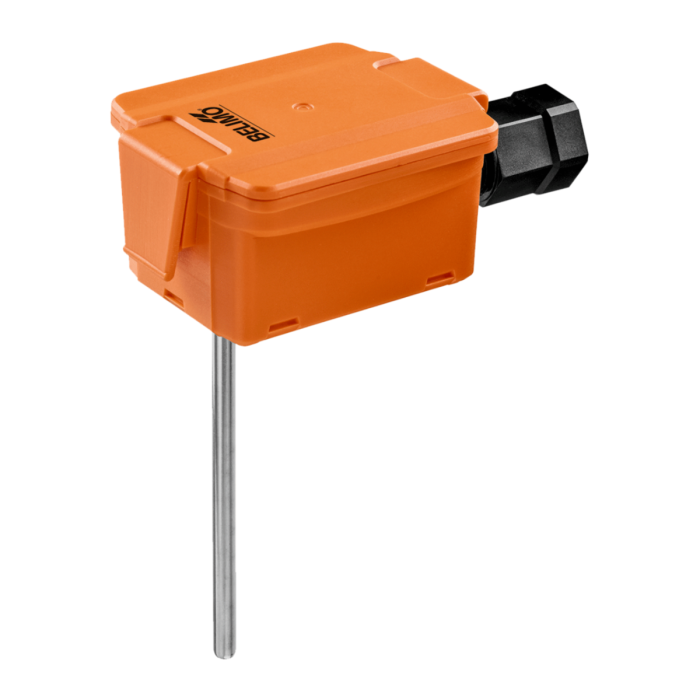

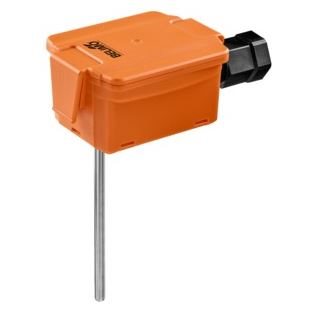

Belimo 01DT-5EP Duct Temperature Sensor Ni1000 Output Signal (8 in.)

Product Description

The Belimo Duct Temperature Sensor, model 01DT-5EP, is designed to measure temperature in duct applications. This sensor is ideal for monitoring HVAC systems to ensure efficient climate control. It features a reliable Ni1000 output signal which helps ensure accurate readings.

• Measures temperature in duct and pipe applications.
• NEMA 4X enclosure for durability.
• Includes removable terminal block for easy installation.

Product Highlights

This sensor also supports conduit adaptations and can be used with stainless steel or brass thermowells. The probe length is eight inches, making it suitable for various applications.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 01DT-5EP

Technical Specifications

• Application: Duct, Pipe
• Sensor Type: Temperature
• Mounting Type: Duct Mount, Well Mount
• Output Signal: Ni1000 (JCI)
• Probe Length: 8 in (200 mm)
• Degree of Protection: IP65, NEMA 4X
• Measuring Range Temperature: -60 to 320 degrees Fahrenheit (-50 to 160 degrees Celsius)
• Electrical Connection: Terminals
