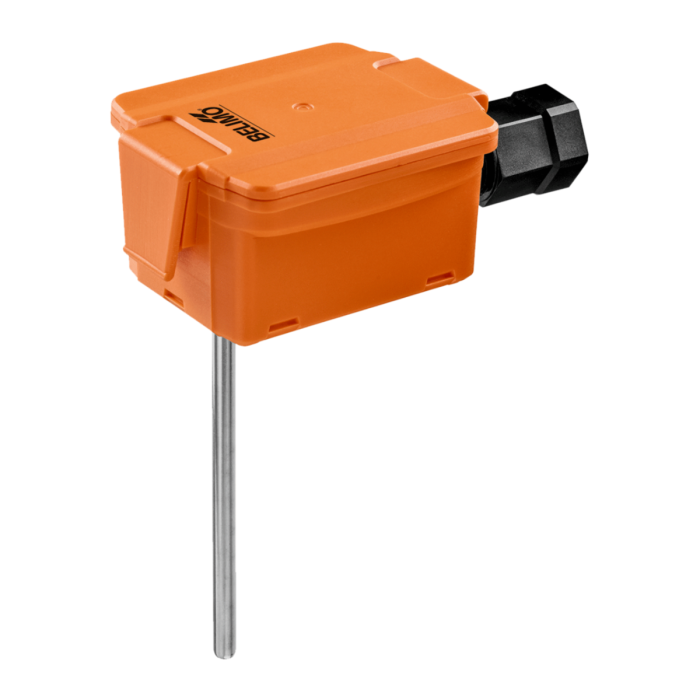

Belimo 01DT-5EN Duct Temperature Sensor Ni1000 (6 in)

Product Description

The Belimo 01DT-5EN is a duct temperature sensor designed for HVAC applications. This sensor features a Ni1000 output signal and is housed in a NEMA 4X rated enclosure suitable for various environments. The probe length measures six inches and is effective for measuring temperatures in duct applications. It can also be used with a stainless steel or brass thermowell for pipe applications.

• Designed for duct and pipe temperature measurement.
• NEMA 4X enclosure for durability.
• Compatible with thermowell adapters.

Product Highlights

The Belimo 01DT-5EN is ideal for HVAC systems, providing accurate temperature readings in duct systems and pipe installations.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 01DT-5EN

Technical Specifications

• Mounting Type: Duct Mount, Immersion
• Enclosure: NEMA 4X
• Probe Length: 6 inches
• Output Signal: Ni1000 (JCI)
• Measured Values: Temperature
• Measuring Range: -60 to 320 degrees Fahrenheit
• Electrical Connection: Terminals
• Application: Duct, Pipe
