Belimo 01DT-5BL Duct Temp Sensor PT1000 100x6 4 inches

Product Description

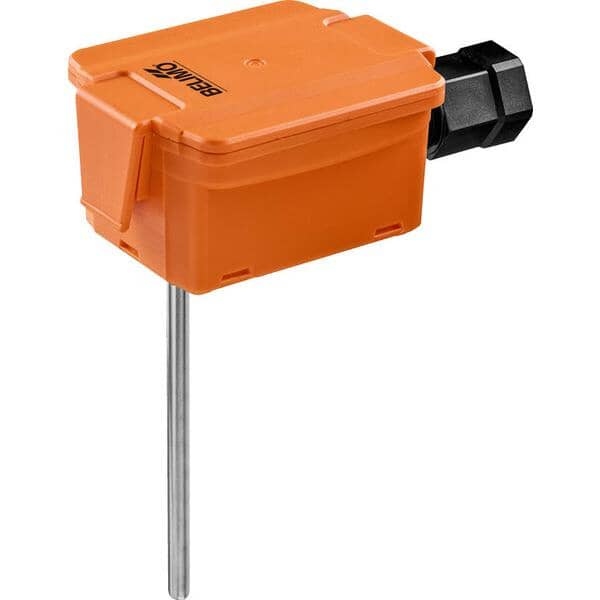

The Belimo 01DT-5BL duct/immersion temperature sensor is designed for duct and pipe applications. It features a NEMA 4X / IP65 rated enclosure and a 4" probe length. Stainless steel or brass thermowell pockets should be purchased with sensors intended for immersion applications. The sensor utilizes terminal electrical connections.

• Measures air temperature in ducts or liquid temperature when immersed.
• Features a 4-inch probe for accurate readings in confined spaces.
• Protected by a rugged NEMA 4X/IP65 enclosure against dust, water, and harsh conditions.

Product Highlights

This Belimo temperature sensor provides accurate temperature monitoring in demanding environments, suitable for HVAC systems, industrial processes, and more.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: 01DT-5BL

Technical Specifications

• Accessory Type: Sensors
• Application: Duct, Pipe
• Degree of Protection: IP65
• Electrical Connection: Terminals
• Measured Values: Temperature
• Measuring Range Temperature: -60...320°F [-50...160°C]
• Mounting Type: Single Point, Immersion
• Output Signal: Pt1000
• Probe Length: 4"
• Product Type: Sensor
• Sensor Type: Temperature
• Manufacturer: Belimo
• Manufacturer #: 01DT-5BL
• Temperature Element: 1K Platinum RTD
• Supported Protocols: None
• Humidity Element: None
• CO2 Element: None
• Setpoint: No Setpoint
• Override: No Override
• Display: No Display
