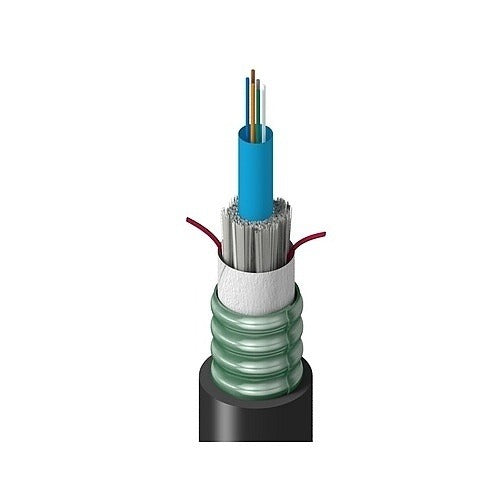

Belden Inc. TU3C0006RS2N OM3 6-fiber Optic Cable

Product Description

The BELDEN INC. TU3C0006RS2N is an OM3 multimode fiber optic cable assembly configured with 6 fibers in a tight-buffered, corning-type construction. This cable is designed for high-bandwidth data transmission in structured cabling environments. The OM3 rating supports 10 Gigabit Ethernet and similar high-speed protocols over standard multimode distances. Low-smoke, zero-halogen or plenum-rated outer jacket construction is typical for this product family, making it suitable for use in air-handling spaces where fire and smoke codes apply. Installation is performed by licensed low-voltage contractors or data communications technicians.

This cable assembly is suited for use in commercial building infrastructure, data centers, campus backbone runs, and riser or plenum pathways requiring multimode fiber with a 6-fiber count. The tight-buffered design simplifies termination and makes the cable well-matched for short to medium indoor runs between telecommunications rooms and equipment rooms. It is commonly installed in structured cabling systems conforming to ANSI/TIA-568 standards.

Key Features

• OM3 multimode fiber classification supports 10 Gigabit Ethernet applications
• 6-fiber count in a single cable assembly
• Tight-buffered construction for simplified field termination
• Designed for indoor structured cabling and backbone applications
• Sold as individual assembly unit (EA)

Compatibility

Designed as an OEM-style replacement or new-installation fiber cable for indoor multimode structured cabling systems requiring OM3-rated 6-fiber assemblies.

Installation Notes

Installation should be performed by a qualified low-voltage technician or registered communications distribution designer. De-energize all connected active equipment before terminating or splicing fiber. Follow bend-radius minimums specified by the cable manufacturer to avoid signal loss or fiber damage. Installations in plenum or riser pathways must comply with applicable local and national building codes including NFPA 70 (NEC) Article 770.
