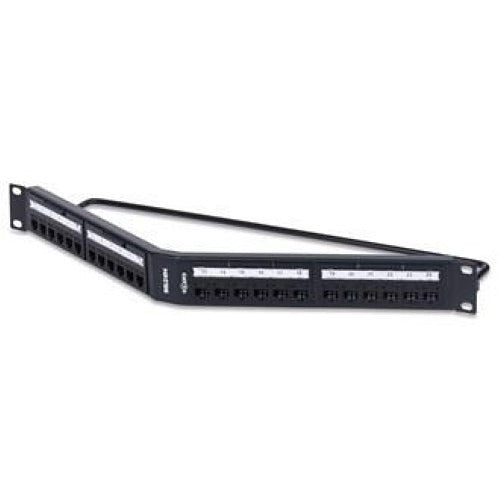

Belden Inc. RV6PPA1U24BK CAT6 Angled Patch Panel 24 Port

Product Description

The BELDEN INC. RV6PPA1U24BK is a CAT6 Plus RevConn angled patch panel designed for structured cabling installations in network distribution frames and telecom closets. Built around Belden's RevConn termination system, this panel simplifies field termination by allowing technicians to load and punch down keystone-style inserts from the front of the panel without reaching behind the rack. The angled port orientation improves cable management by directing patch cords away from adjacent equipment and reducing bend radius stress on horizontal runs. This is a 24-port, 1U panel suitable for CAT6 and CAT6A cabling infrastructure.

This panel is used in commercial and enterprise network installations where rack space is limited and front-access termination is preferred. It is typically installed in 19-inch EIA equipment racks or two-post relay racks within IDF and MDF closets. Network technicians and low-voltage cabling contractors install this panel as part of a structured cabling system serving data, voice, and PoE applications. The RevConn angled design is especially useful during moves, adds, and changes where rear access is restricted.

Key Features

• CAT6 Plus performance rating supports high-speed data and PoE applications
• RevConn front-access termination eliminates the need for rear-of-panel punch-down access
• Angled port orientation improves patch cord routing and reduces cable stress
• 24-port, 1U form factor maximizes port density in standard equipment racks
• Sold as a single unit (EA), quantity one per order

Compatibility

Designed as an OEM-style structured cabling component compatible with standard 19-inch EIA equipment racks. Intended for use within CAT6 and CAT6A cabling systems as classified under the CAT6/6A patch panel product category.

Installation Notes

Installation is performed by licensed low-voltage cabling contractors or network technicians following TIA-568 structured cabling standards. Power down any active switching equipment in the rack before mounting hardware to avoid accidental disconnection of live network ports. Secure the panel to the rack using appropriate cage nuts and screws, then complete front-face terminations using the RevConn system per the manufacturer's termination instructions. Verify cable management compliance with minimum bend radius requirements for CAT6 cabling after all terminations are complete.
