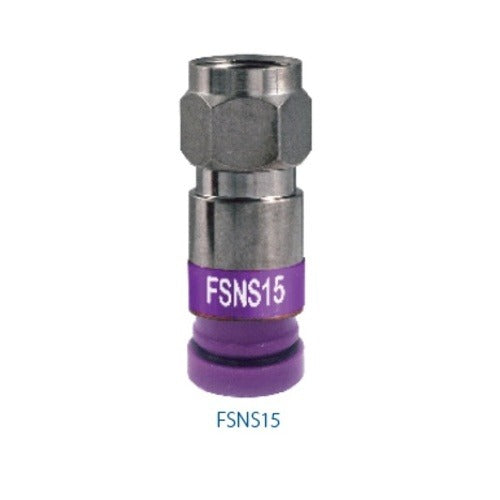

Belden Inc. FSNS15-25 Coax Connector 22-24 Awg Mini F

Product Description

The BELDEN INC. FSNS15-25 is a Mini F-type coaxial connector designed for use with 22 to 24 AWG coaxial cable. This connector falls into the universal fitting category, meaning it is engineered to terminate coax cable ends in signal distribution applications. F-type connectors are standard hardware in low-voltage signal work, used to maintain reliable RF signal paths in residential and light commercial installations. Technicians working in cable TV, satellite, or structured wiring applications will recognize this as a standard termination component. Note that this part has been marked discontinued by the manufacturer and may have limited availability.

This connector is suited for use in residential and light commercial signal distribution systems where 22 to 24 AWG coaxial cable is the specified conductor. Typical applications include antenna, cable TV, and satellite dish wiring runs where a secure, low-loss F-type termination is required. The Mini F form factor is common in compact device ports and tight-space installations where a standard-size F connector will not fit. Low-voltage technicians and structured wiring installers are the primary trade for this component.

Key Features

• Mini F-type coaxial connector for compact termination points
• Compatible with 22 to 24 AWG coaxial cable gauges
• Universal design intended to fit a range of cable profiles within the specified AWG range
• Sold individually as a single unit per package
• Applicable to antenna, cable TV, and satellite signal distribution wiring

Compatibility

Designed as an OEM-style termination connector for coaxial signal distribution systems using 22 to 24 AWG cable with Mini F-type connection ports.

Installation Notes

Installation is typically performed by low-voltage technicians or structured wiring professionals. Ensure the coaxial cable is properly stripped and prepared before termination to maintain signal integrity. De-energize or disconnect any active signal source before working on the coaxial line. Follow applicable local low-voltage wiring codes and manufacturer termination guidelines when installing F-type connectors.
