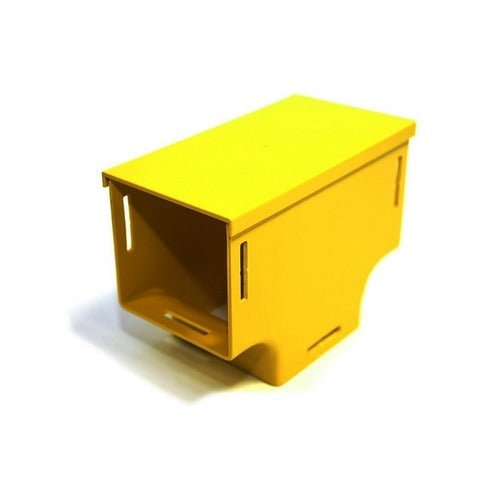

Belden Inc. FRCV3YLN Vertical Tee 100mm X 100mm

Product Description

The BELDEN INC. FRCV3YLN is a vertical tee fitting designed for use with 100mm x 100mm surface raceway and conduit systems. This fitting creates a 90-degree vertical branch junction in a raceway run, allowing cable management pathways to split or change direction in the vertical plane. It is sold as a single unit and is installed by licensed electricians and low-voltage wiring technicians in commercial and industrial settings where organized cable routing is required.

The FRCV3YLN fits into raceway installations where a vertical branch point is needed along a wall or column-mounted conduit run. Typical applications include structured cabling, data and communications wiring, and power distribution raceway systems in commercial buildings, offices, and light industrial facilities. The fitting maintains the uniform profile of a 100mm x 100mm raceway system throughout the junction point.

Key Features

• Vertical tee configuration for 90-degree branch junctions in raceway runs
• Sized for 100mm x 100mm raceway channel systems
• Single-unit packaging for precise quantity ordering
• Designed for surface-mount raceway and conduit applications

Compatibility

Designed as an OEM-style fitting for 100mm x 100mm surface raceway and conduit systems in the raceway and conduit product category.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements for raceway systems. De-energize all circuits in the raceway before beginning work. Secure the fitting to the existing raceway channel per manufacturer guidelines and ensure all cable pathways are properly seated before closing the raceway cover. Do not force or over-stress the fitting during assembly, as this may compromise the raceway seal or structural integrity.
