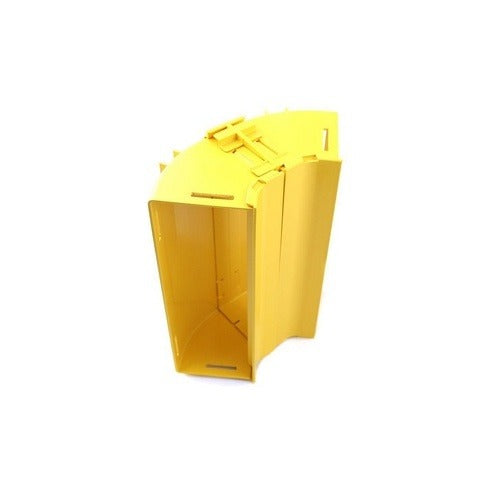

Belden Inc. FRCE5YN9UK 90 Degree Elbow Raceway

Product Description

The BELDEN INC. FRCE5YN9UK is a 90-degree up elbow fitting designed for use in raceway and conduit systems. This fitting redirects conduit runs at a 90-degree upward angle, allowing installers to navigate vertical transitions within structured wiring and cable management pathways. It is sold as an individual unit and is intended for installation by licensed electricians and low-voltage technicians working on commercial or residential conduit routing projects. The FRCE5YN9UK provides a clean, code-compatible transition point within a conduit assembly.

This elbow fitting is used in raceway and conduit installations where a 90-degree upward directional change is required. Typical applications include wall-mounted raceway systems used to route electrical conductors, data cables, or low-voltage wiring. It is suited for both new construction and retrofit installations where surface-mounted conduit management is part of the wiring plan. Electricians and low-voltage installers commonly use this fitting when building out structured wiring runs along walls or at floor-to-wall transitions.

Key Features

• 90-degree upward elbow geometry for vertical conduit direction changes
• Designed for use in raceway and conduit systems
• Sold individually, one piece per unit
• Supports clean, organized cable routing at transition points

Compatibility

Designed as an OEM-style replacement or component fitting for raceway and conduit systems. Consult the manufacturer documentation to confirm fitment with specific raceway channel series before installation.

Installation Notes

Installation should be performed by a qualified electrician or licensed low-voltage technician in accordance with applicable NEC requirements. De-energize all circuits in the affected raceway run before beginning work. Verify that the elbow fitting is fully seated and secured to adjacent raceway sections before routing conductors through the assembly. Do not exceed the fill capacity of the conduit system as defined by the applicable electrical code.
