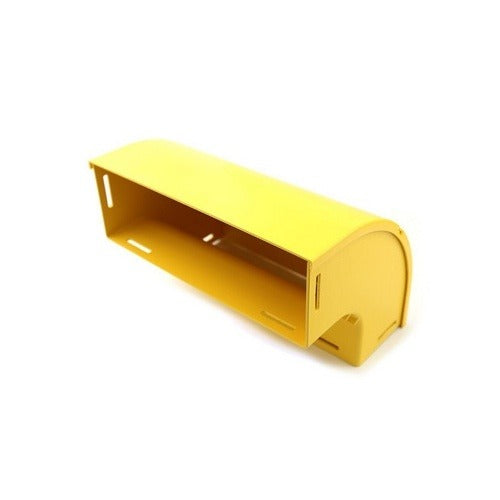

Belden Inc. FRCE5YN9D 90 Degree Down Elbow Conduit

Product Description

The BELDEN INC. FRCE5YN9D is a 90-degree down elbow fitting used in raceway and conduit systems. It redirects a conduit run downward at a right angle, allowing installers to transition from a horizontal run to a vertical drop without cutting or bending conduit in the field. This type of fitting is a standard component in surface-mounted raceway installations and is sold as an individual unit. Electricians and low-voltage installers use this fitting to maintain clean, code-compliant wire management in commercial and residential applications.

The FRCE5YN9D is suited for use in raceway and conduit installations where a 90-degree downward directional change is required. Typical applications include surface-mounted conduit systems along walls, columns, and equipment enclosures. It is commonly used in electrical, data, and low-voltage wiring runs where wire management and physical protection of conductors are required. This fitting integrates with compatible raceway channel and cover systems to form a continuous, enclosed pathway.

Key Features

• 90-degree down elbow geometry for clean directional transitions in raceway runs
• Designed for surface-mounted raceway and conduit systems
• Sold as an individual unit for targeted replacement or new installation use
• Compatible with standard raceway channel systems for continuous wire management

Compatibility

Designed as an OEM-style fitting for use with raceway and conduit systems requiring a 90-degree downward elbow transition. Verify channel size and series compatibility with your existing raceway system before installation.

Installation Notes

Installation is typically performed by a licensed electrician or qualified low-voltage technician. De-energize all circuits in the work area before handling conductors or installing fittings. Ensure the elbow is fully seated and secured to the raceway channel per the manufacturer guidelines and applicable NEC requirements for wire management systems. Do not exceed the raceway fill capacity when routing conductors through the fitting.
