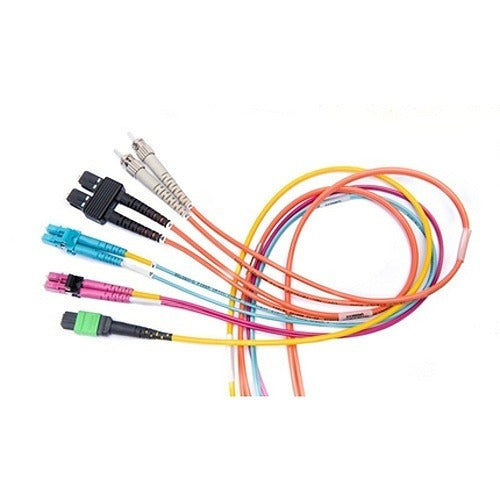

Belden Inc. FP3LD4F001M OM3 Fiber Optic Patch Cable

Product Description

The BELDEN INC. FP3LD4F001M is a fiber optic patch cable designed to connect OM3-rated multimode fiber infrastructure in structured cabling and data center environments. It features a fanout configuration with four LC duplex connectors on one end and an MPO-8 female connector on the other, supporting eight-fiber parallel transmission paths. At 1 meter in length, this cable is suited for short-reach connections between patch panels, transceivers, and active equipment in high-density fiber enclosures. Licensed low-voltage technicians and structured cabling installers are the primary professionals who handle this type of assembly.

This patch cable is used in commercial and enterprise data center environments where OM3 multimode fiber is deployed for high-speed LAN or SAN applications. The MPO-8 female to 4x LC duplex breakout format is a common configuration for connecting MPO trunk cables or cassettes to individual LC-based equipment ports. It is well-suited for high-density patching scenarios in server rooms, telecom closets, and fiber distribution frames.

Key Features

• OM3 multimode fiber rating supports laser-optimized 10G and 40G applications
• MPO-8 female connector on one end for high-density trunk or cassette interconnection
• Four LC duplex connectors on the fanout end for direct equipment connectivity
• 1-meter length optimized for short-reach patch panel and equipment connections
• Pre-terminated factory assembly ensures consistent insertion loss and polarity

Compatibility

Designed as an OEM-style replacement or supplemental patch cable for OM3 multimode fiber systems using MPO-8 female to LC duplex breakout configurations in structured cabling installations.

Installation Notes

Installation of fiber optic patch cables should be performed by qualified low-voltage technicians or structured cabling professionals familiar with TIA-568 standards. Clean all fiber end-faces with an appropriate fiber optic cleaning tool before mating connectors to prevent contamination-related signal loss. Do not bend the cable beyond its minimum bend radius, and avoid applying tension to the connectors during routing. Verify polarity of the MPO end before placing the cable into service.
