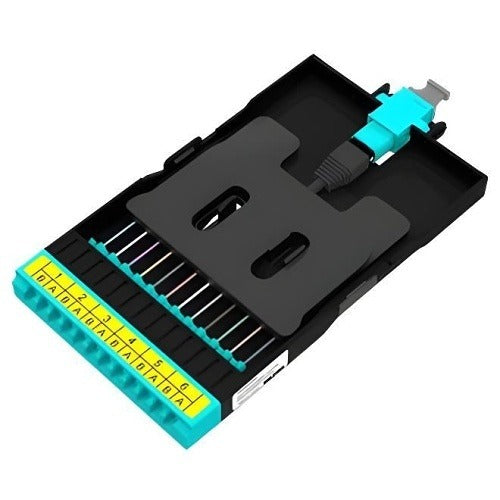

Belden Inc. FF3D06LDMF1A OM3 6-port Fiber Optic Frame

Product Description

The BELDEN INC. FF3D06LDMF1A is a fiber optic connectivity frame designed for structured cabling and data center distribution applications. Built around OM3 multimode fiber standards, this 6-port frame serves as a modular termination and management point within fiber optic hardware systems. It accepts MOP12-style modules and provides a clean, organized interface for high-density fiber runs. Licensed low-voltage and data cabling technicians are the primary installers. The frame is sold as a single unit and fits into the FX DCX frame family for scalable fiber infrastructure builds.

This frame is suited for commercial and enterprise environments where OM3 multimode fiber is deployed for backbone or horizontal cabling segments. Typical installations include telecommunications rooms, main distribution areas, and data center patch zones. The 6-port configuration fits applications that require a compact, modular termination point without committing to higher-density enclosures. The MOP12(F) interface designation indicates a specific module format that should be matched when selecting compatible adapter modules or inserts.

Key Features

• OM3 multimode fiber rated for high-bandwidth structured cabling deployments
• 6-port capacity provides a compact termination footprint
• MOP12(F) module interface for modular adapter and insert compatibility
• Part of the FX DCX frame platform for scalable, organized fiber management
• Single-unit packaging for straightforward procurement and installation

Compatibility

Designed as an OEM-style component within the FX DCX fiber optic frame system, intended for use with OM3 multimode fiber infrastructure and MOP12(F)-compatible adapter modules. No additional specific model compatibility data was provided in the source information.

Installation Notes

Installation should be performed by a licensed low-voltage or structured cabling technician in accordance with TIA-568 and applicable local codes. De-energize and disconnect all active fiber links before working in the enclosure or handling fiber terminations. Avoid sharp bend radii on OM3 fiber when routing cables into the frame. Inspect all module seating and adapter alignment before restoring active links.
