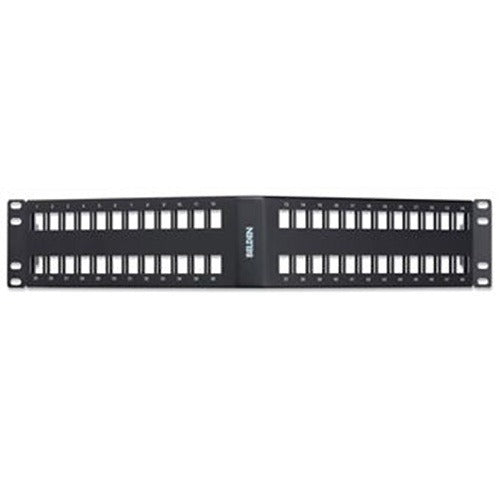

Belden Inc. AX107320 Keyconnect 48-port Patch Panel

Product Description

The BELDEN INC. AX107320 is a 48-port angled patch panel designed for structured cabling installations in network distribution frames and telecommunications rooms. Built on the KeyConnect modular platform, the panel accepts individual KeyConnect keystone-style inserts, allowing technicians to configure port types to match the specific cabling infrastructure in place. The angled port orientation improves cable management by directing patch cords away from the panel face and reducing stress on connector terminations. This unit ships as a single panel without pre-installed jacks, making it a flexible blank chassis for custom port builds.

The AX107320 is suited for installation in standard 19-inch equipment racks and enclosures commonly found in enterprise LAN rooms, commercial structured cabling systems, and data distribution points. Network technicians and low-voltage cabling contractors install this panel during rack build-outs or system expansions. The modular design allows individual port positions to be populated incrementally as the cabling project progresses, reducing upfront hardware cost for partially populated deployments.

Key Features

• 48-port modular chassis accepts KeyConnect keystone inserts for flexible port configuration
• Angled port layout directs patch cords downward to improve front-of-rack cable management
• Blank panel design ships without jacks, supporting custom copper or fiber port builds
• Compatible with standard 19-inch rack mounting
• Sold as a single panel unit

Compatibility

Designed for use with BELDEN INC. KeyConnect modular keystone inserts. No additional specific compatible model numbers were provided in the product data.

Installation Notes

Installation is performed by licensed low-voltage cabling technicians or qualified network infrastructure contractors. Before working in an active rack, power down or disconnect any adjacent active equipment as required by site safety procedures and applicable low-voltage codes. Secure the panel to the rack using appropriate cage nuts and screws rated for the enclosure, and populate keystone insert positions before terminating patch cords. Verify that cable bend radius requirements are maintained at the angled port face to preserve signal integrity.
