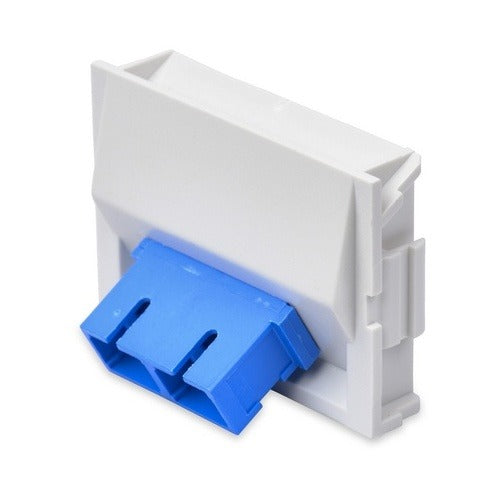

Belden Inc. AX101941 Mflex Sc Duplex Multimode Insert

Product Description

The BELDEN INC. AX101901 AX101941 is a fiber optic insert designed for MFlex modular faceplate and patch panel systems. This insert accepts SC duplex connectors and supports multimode fiber runs, making it a standard component in structured cabling installations. Electricians and low-voltage cabling technicians use this insert to terminate and organize multimode fiber optic circuits in commercial and industrial environments. It installs into compatible MFlex housings and provides a clean, secure connection point for SC duplex patch cords or pigtails.

This insert is suited for multimode fiber optic distribution in office buildings, data centers, and industrial facilities where modular connectivity solutions are required. It fits into MFlex modular frames and faceplates, allowing technicians to configure outlets to meet specific port-count and fiber-type requirements. Each insert is sold individually, making it easy to populate or reconfigure panels as network layouts change.

Key Features

• SC duplex connector interface for multimode fiber optic circuits
• Designed for use in MFlex modular faceplate and patch panel housings
• Single-unit packaging allows flexible panel population
• Part of the fiber optic hardware and connectivity product category

Compatibility

Designed as an OEM-style replacement or expansion insert for MFlex modular fiber optic faceplate and patch panel systems accepting SC duplex multimode inserts.

Installation Notes

Installation is typically performed by a licensed low-voltage or registered communications cabling technician. Ensure the MFlex housing or faceplate is de-energized and fiber circuits are properly managed before inserting or removing fiber optic components. Follow TIA-568 standards for fiber optic connector installation and bend-radius guidelines to avoid signal loss. Do not force the insert into the housing frame; confirm correct orientation before seating.
