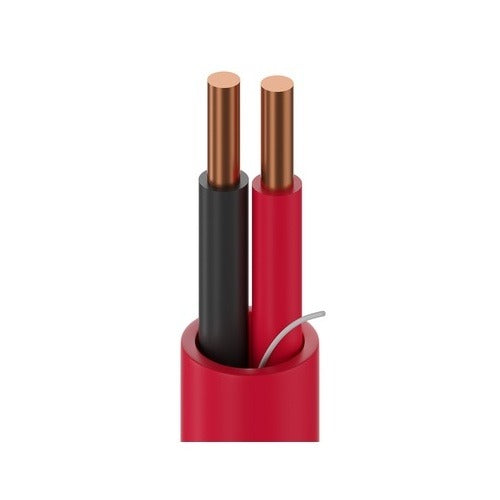

Belden Inc. 5220UL 002U1000 Fire Alarm Cable 16 Awg

Product Description

The BELDEN INC. 5220UL 002U1000 is a 2-conductor, 16 AWG fire alarm cable rated for riser applications under the FPLR (Fire Power Limited Riser) designation. Built to handle the signal and power demands of fire detection and notification systems, this cable is designed for vertical runs between floors in commercial and residential buildings. The FPLR rating means it meets UL requirements for flame propagation in riser installations, making it appropriate where local codes require a listed riser cable rather than a general-purpose alternative. Electricians and fire alarm system installers use this cable for low-voltage signaling circuits throughout protected structures.

This cable is suited for fire alarm circuits in multi-story commercial buildings, office complexes, hotels, and residential structures where vertical cable routing through floor penetrations is required. It supports point-to-point wiring between fire alarm control panels, initiating devices such as smoke detectors and pull stations, and notification appliances. The 16 AWG conductor size supports typical Class B and Class A signaling circuit runs common in addressable and conventional fire alarm systems.

Key Features

• FPLR (Fire Power Limited Riser) rating meets UL listing requirements for riser cable installations
• 2-conductor configuration suited for standard fire alarm signaling circuits
• 16 AWG conductor gauge supports low-voltage fire alarm signal and power circuits
• Designed for vertical riser runs through floor penetrations in multi-story structures
• Listed under UL category for fire alarm cables, supporting NEC compliance

Compatibility

Designed as a riser-rated fire alarm cable for use in low-voltage fire detection and notification wiring applications in commercial and residential buildings where an FPLR-listed cable is required by the National Electrical Code or local authority having jurisdiction.

Installation Notes

Installation should be performed by a licensed electrician or qualified fire alarm technician in accordance with NFPA 72 and the applicable sections of the NEC governing fire alarm wiring. De-energize the fire alarm control panel and associated circuits before making any terminations or splices. Route and support cable in compliance with local code requirements for riser penetrations, including proper firestopping at each floor penetration. Do not exceed the bend radius specified by the manufacturer, and avoid running signal cable parallel to high-voltage power conductors without adequate separation.
