Belden Inc. 4694RMBUHD3 B50 Micro Bnc Connector 4K Uhd

Product Description

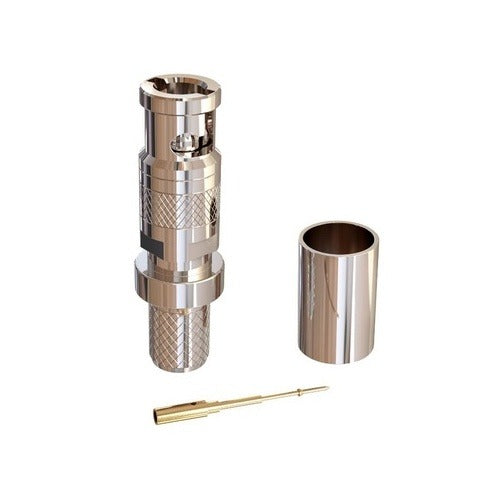

The BELDEN INC. 4694RMBUHD3 B50 is a 3-piece Micro BNC connector designed for terminating coaxial cable in 4K UHD video signal applications. This connector is engineered to maintain signal integrity at the high data rates required by 4K video infrastructure, making it a reliable choice for broadcast, AV integration, and production facility wiring. The 3-piece construction allows for field termination using standard compression or crimp tooling. It is sold as a single connector unit and is compatible with the 1694 and 4694 cable series from the same manufacturer. AV technicians and low-voltage installers are the primary trades working with this connector.

This Micro BNC connector is intended for use in high-bandwidth coaxial signal runs where standard full-size BNC connectors are not suitable due to space constraints. Typical installation scenarios include dense patch panels, camera back panels, routing switchers, and rack-mounted video equipment in broadcast studios, mobile production units, and commercial AV systems. The compact Micro BNC form factor allows for higher port density without sacrificing 4K UHD signal performance. It is designed for use with Belden 1694 and 4694 series coaxial cables.

Key Features

• 3-piece connector design supports field termination on coaxial cable
• Micro BNC form factor enables high-density panel configurations
• Rated for 4K UHD signal performance on compatible coaxial cable
• Compatible with Belden 1694 and 4694 series cables
• Sold individually as a single connector unit

Compatibility

Designed for use with Belden 1694 and 4694 series coaxial cables as stated in the product designation. Verify cable outside diameter and conductor size against connector specifications before termination.

Installation Notes

Low-voltage AV technicians and broadcast infrastructure installers are the typical trades for this connector. Proper compression or crimp tooling rated for Micro BNC connectors is required to achieve a secure, low-loss termination. Signal paths should be tested with appropriate video test equipment after termination to confirm 4K UHD signal integrity. Follow facility and applicable low-voltage wiring codes when routing and terminating coaxial signal cable.
