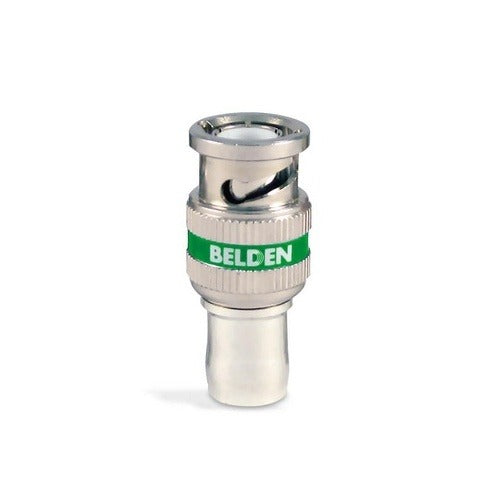

Belden Inc. 1694ABHD1 Bnc Connector RG6 Hd Chrome

Product Description

The BELDEN INC. 1694ABHD1 is a single-piece BNC connector finished in chrome, designed for use with RG6 coaxial cable in high-definition video applications. This compression-style connector provides a secure, low-loss termination point for coaxial cable runs used in broadcast, security, and AV distribution systems. The one-piece construction simplifies installation and reduces the number of loose components at the termination point. Audio-visual installers, low-voltage technicians, and security system integrators are the primary trades working with this connector.

This connector is suited for residential and commercial AV installations where RG6 coaxial cable is routed to HD video equipment, distribution amplifiers, cameras, or display devices. It is commonly installed at wall plates, patch panels, and equipment rack terminations. The chrome finish provides corrosion resistance and a clean, professional appearance at visible termination points. Applications include HD-SDI video runs, CCTV systems, and structured wiring panels.

Key Features

• Single-piece BNC design reduces component count during termination
• Sized for RG6 coaxial cable
• Chrome finish for corrosion resistance and a finished appearance
• Suited for HD video signal applications including HD-SDI and CCTV
• Sold individually — quantity of one per unit

Compatibility

Designed as an OEM-style termination connector for RG6 coaxial cable in HD video and AV distribution systems.

Installation Notes

Installation should be performed by a licensed low-voltage technician or qualified AV installer following applicable NEC low-voltage wiring guidelines. De-energize all connected equipment before terminating connectors at active distribution or display devices. Use a proper coaxial cable stripper and BNC compression tool sized for RG6 to ensure a reliable, low-loss connection. Avoid over-compressing or under-compressing the connector body, as either condition can degrade signal integrity.
