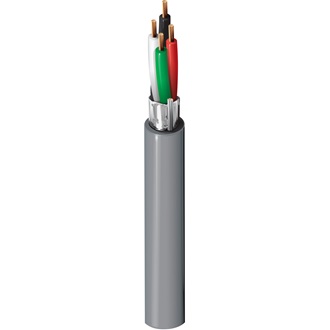

Belden 5302FE-008100 Security & Sound Cable, Shielded, CMR

Product Description

The Belden 5302FE-008100 is a security and sound cable suitable for riser applications. It includes four 18 AWG stranded bare copper conductors surrounded by polypropylene insulation and a Beldfoil shield. This design minimizes interference while providing reliable performance. The cable features a PVC jacket and comes with a ripcord for easy stripping, making it ideal for various indoor applications including security systems, intercoms, and audio setups.

• Four 18 AWG stranded bare copper conductors.
• Beldfoil shield protects against interference.
• Rated for maximum voltage of 300V (CMR).

Product Highlights

This cable is designed for durability and reliability in sound and security system installations.

Product Information

Standard Information

• Brand: Belden
• MPN: 5302FE-008100

Technical Specifications

• Suitable Applications: Security Systems, Intercom, Audio, Power-Limited Controls
• Number of Conductors: 4
• Gauge: 18 AWG
• Stranding: 7x26
• Conductor Material: Bare Copper
• Insulation Material: Polyolefin
• Insulation Thickness: 0.009 inches
• Overall Cable Diameter: 0.188 inches
• Jacket Material: PVC
• Operating Temperature: -20°C to +75°C
• Max Voltage: 300 V
• Max Current: 4 Amps per conductor at 25°C
• Environmental Suitability: Indoor, Outdoor, Riser
• Color: Gray
