Beckett IPC13A Condensate Pump-In Pan 115V

Product Description

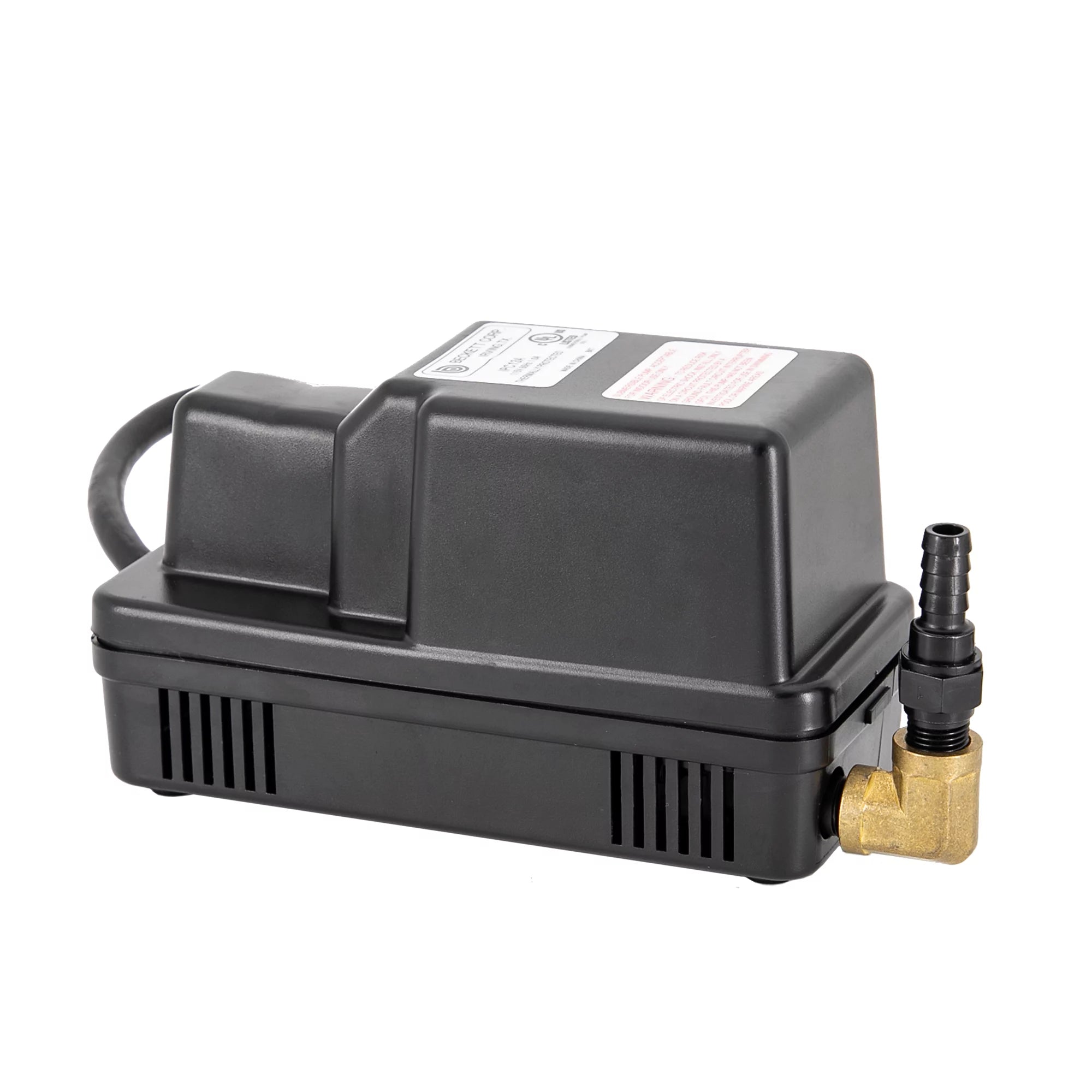

The Beckett IPC13A is a totally submersible pump with a built-in, hermetically sealed, pressure activated switch. It operates automatically when the water level reaches approximately 1.7" and turns off at .9". Its compact size, high lift, and quiet operation make it suitable for condensate removal and various O.E.M. requirements.

• Totally submersible pump with automatic operation
• Features a built-in, hermetically sealed, pressure activated switch
• UL/Cul Listed, 115V 60Hz

Product Highlights

The Beckett IPC13A is ideal for applications requiring automatic control and dependability, such as condensate removal.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: IPC13A
• Country of Origin: CHN

Technical Specifications

• Amps: 0.9
• Brand: Beckett
• Check Valve: Yes
• Connection Size: 3/8"
• Cord Length: 6'
• Cycle/Hertz: 60 Hz
• Discharge: 3/8"
• Gallons Per Hour Of Water: 80

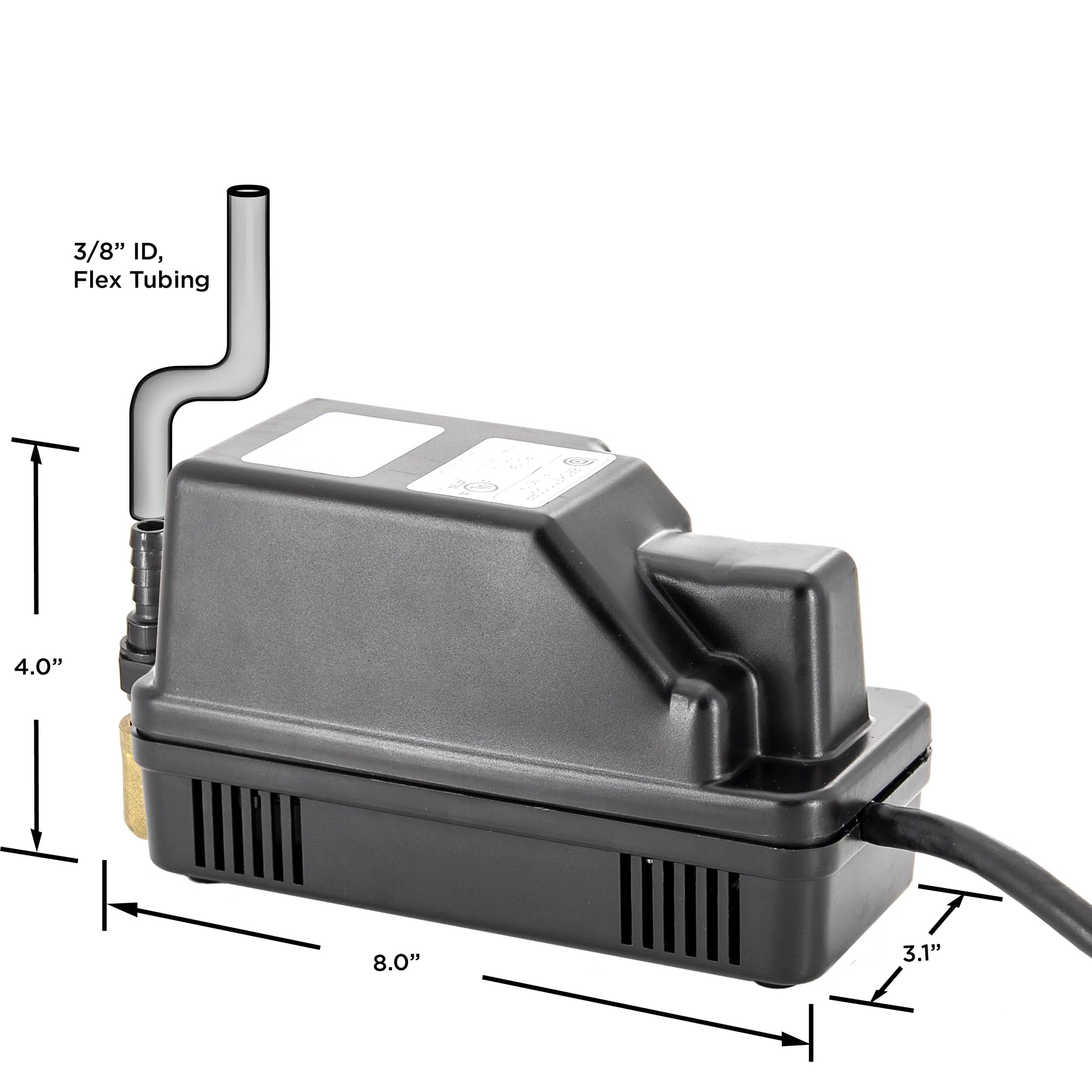

• Height: 4
• Length: 8
• Maximum Pressure (PSI): 5.2
• Maximum Temperature: 140°F (60°C)
• Motor HP: 1/15 HP

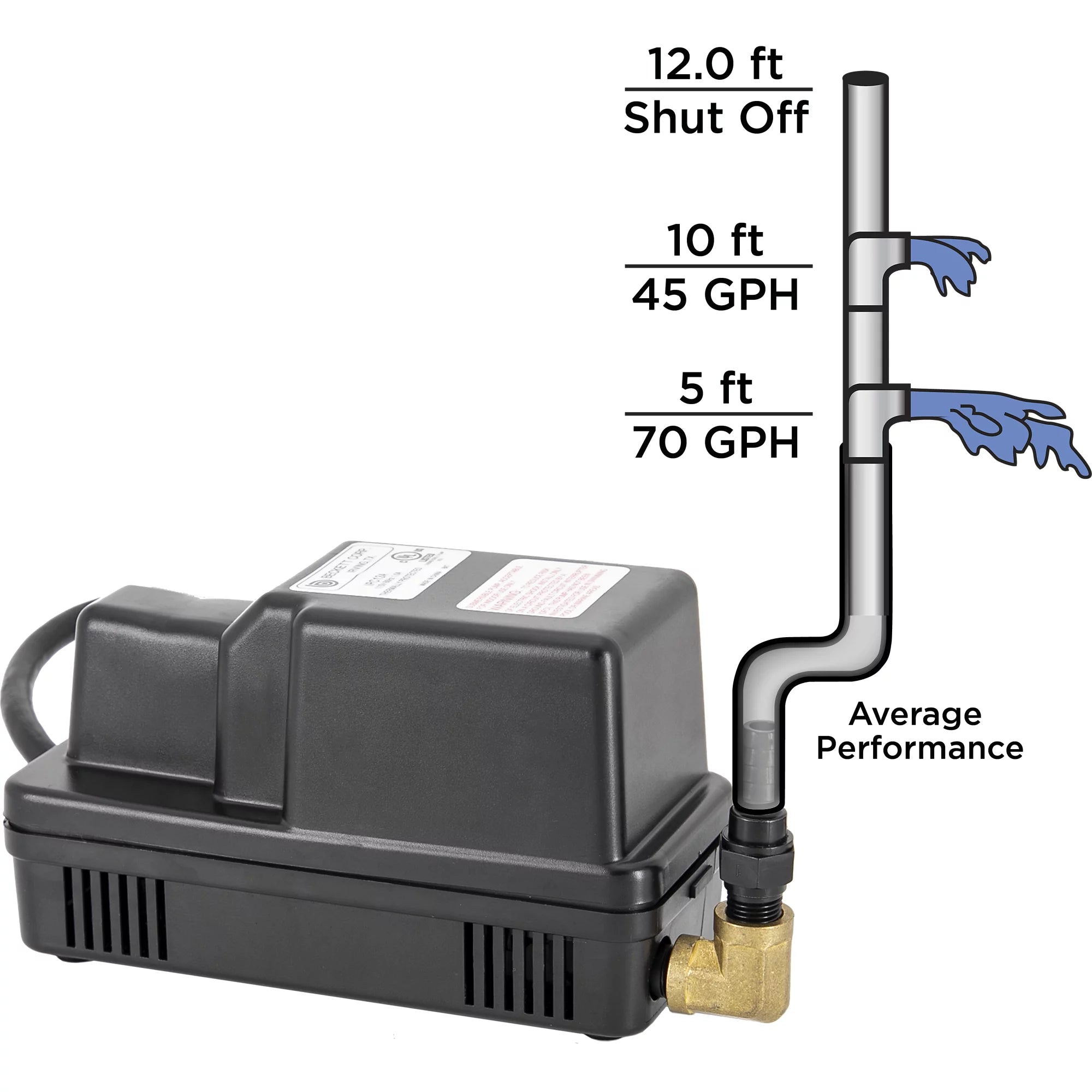

• Shut Off (Ft.): 12'
• UL Listed: Yes
• UL Recognized: Yes
• Voltage: 115 VAC
• Watts: 55
• Width: 3.125
• Application: Condensate (HVAC)
• Condensate Type: In-Pan
• Pump Size: Small
• Shutoff/Max Lift (ft): 12 Ft
• Flow GPH @ 1 ft: 80
• Plenum Rated: No
• Max Water Rating (°F): 86 F
• Discharge Size: 3/8" Barbed
