R.W. Beckett AF44XN 4-1/2 Air Tube Combination w/ F3 Head for AF, AFG Series

Product Description

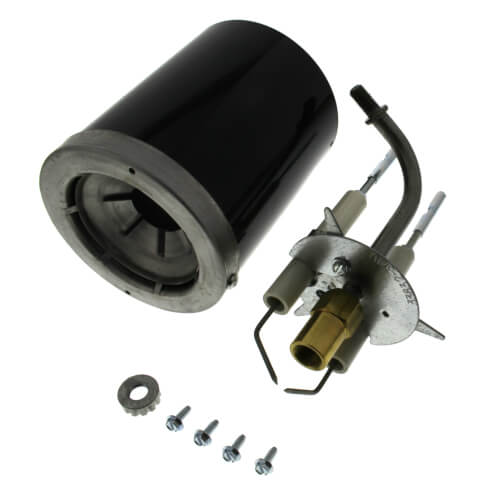

The R.W. Beckett AF44XN is an air tube designed for use with AFG and AF burner chassis. This product features a nozzle line electrode assembly and a fixed retention head. The air tube has a diameter of four inches and is pre-drilled for easy attachment to the burner chassis. The nozzle line electrode assembly provides self-centering capability, delivering oil efficiently to the nozzle while also supplying high voltage electricity to the electrodes. The static plate is included to ensure smooth air flow for optimal combustion.

• Compatible with Beckett AFG and AF burners
• Useable length of four and one-half inches
• Increases combustion efficiency by up to thirty-five percent

Product Highlights

The fixed retention head enhances combustion stability, making it an efficient choice for oil burners.

Product Information

Standard Information

• Brand: R.W. Beckett
• MPN: AF44XN

Technical Specifications

• Useable Length: 4-1/2 inches
• Overall Length: 5 inches
• Static Disk: 2-3/4 inches
• Retention Head: F3
• Firing Range: 0.75 - 1.25 GPH
