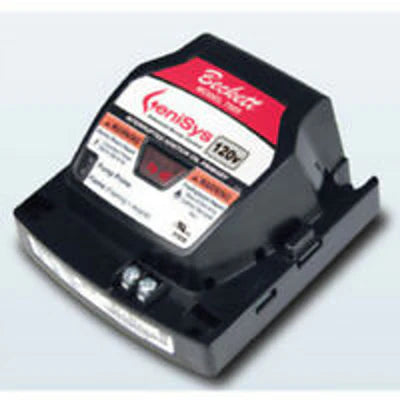

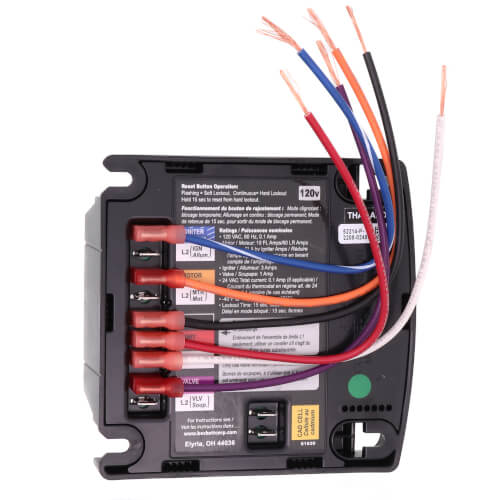

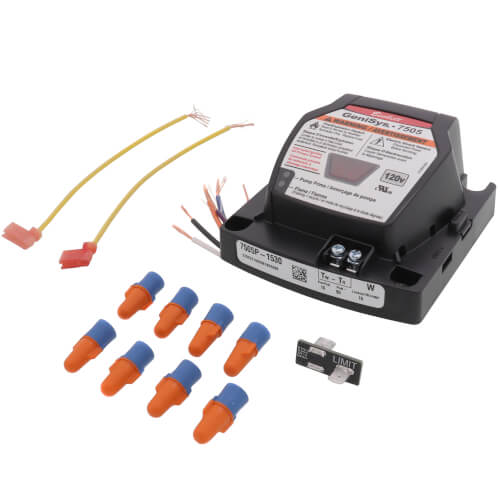

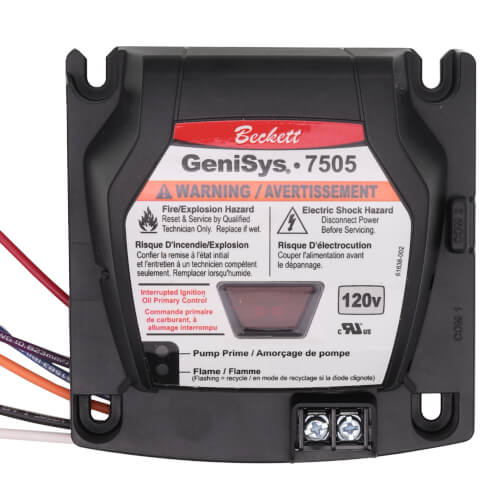

Beckett Igniter 7505P1530U Primary 120V Beckett Igniter Replacement

Product Description

The Beckett Igniter model 7505P1530U is a 120 VAC primary control for oil burners used in residential and light commercial settings. It integrates seamlessly into your heating system providing reliable performance.

• Designed for use with cad cell flame sensors
• Features interrupted or intermittent duty ignition
• Water-resistant and compatible with both mechanical and digital thermostats

Product Highlights

Optimized for safety and efficiency, the GeniSys controller helps maintain a stable and safe environment with its advanced diagnostic and system monitoring capabilities.

Product Information

Standard Information

• Approvals: UL372, UL1998, CSA-B140.0
• Warranty: 5-Year Limited Warranty

Technical Specifications

• Voltage: 120 VAC
• Current: 100 mA plus loads
• Frequency: 60 Hz
• Motor: 10 FLA, 60 LRA
• Igniter: 3 A @ 0.7 PF min
• Solenoid Valve: 1 A @ 0.7 PF min
• Thermostat Anticipator Current: 0.1 A
• Thermostat Voltage: 24 VAC
