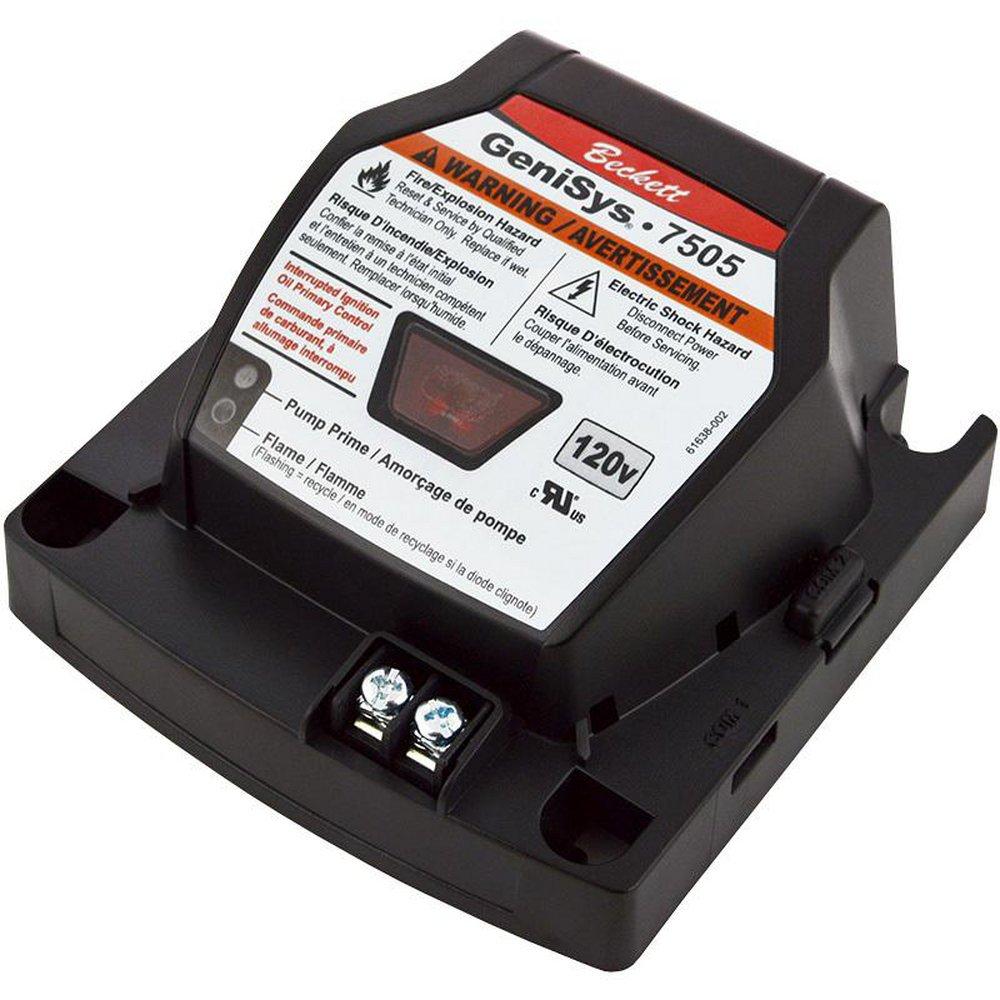

R. W. Beckett 7505A0000U GeniSys 120V Oil Burner Control

Product Description

The R. W. Beckett 7505A0000U GeniSys 120V Oil Burner Control is designed for use in residential and light commercial oil burners. This control unit is compatible with cad cell flame sensors to manage the oil burner motor and igniter. It ensures optimal burner operation with pre-purge and post-purge control.

• Primary control for oil burners
• Compatible with a cad cell flame sensor
• 120V power supply

Product Highlights

This oil burner control ensures reliable and efficient operation in various heating applications. It is engineered for durability and ease of use.

Product Information

Standard Information

• Brand: R. W. Beckett
• MPN: 7505A0000U

Technical Specifications

• Control Timing: 0 seconds pre-purge, 0 seconds post-purge
• Voltage: 120V
• Thermostat Terminals: 24V AC, compatible with both mechanical and many power stealing thermostats
• Lockout Time: 15 seconds
• Dimensions: Length 4 inches, Width 6.5 inches, Height 3.55 inches
• Weight: 1.19 lbs
• Country of Origin: Thailand
• Storage Temperature: -40°F to 150°F
