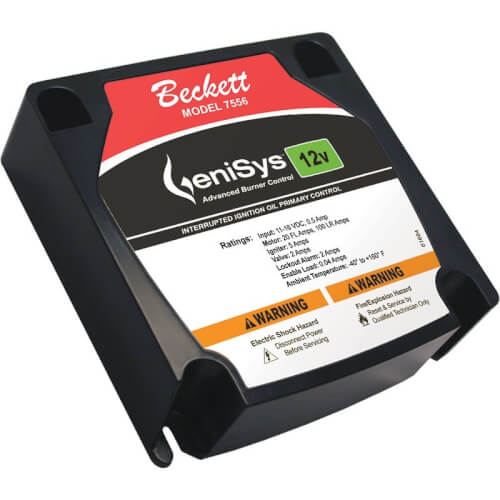

BECKETT 7556P152MU GENESIS PRIMARY CONTROL 12VDC LOCKOUT TIME 15 SECONDS

Product Description

The Beckett 7556P152MU Genesis Primary Control is engineered for efficient 12VDC ignition in various oil-fired appliances like furnaces, boilers, and water heaters. This durable igniter features advanced burner control for improved reliability and efficiency.

• 12VDC operation compatible with multiple oil-fired appliances
• Potted construction enhances durability against environmental factors
• Compact design for easy installation in space-constrained areas

Product Highlights

Equipped with a 15-second lockout time, this device ensures safe operation by preventing the burner from igniting prematurely. Its programmable valve-on delay and motor-off delay allow for tailored operation according to system requirements. It's also fused to protect against power surges and features a high ambient temperature rating, ensuring performance in varying climates.

Product Information

Standard Information

• Brand: BECKETT
• MPN: 7556P152MU

Technical Specifications

• Operational Voltage: 12 VDC nominal (11 to 16 VDC)
• Current: 160 mA nominal (500 mA max at 16 VDC)
• Motor: 20 FLA, 100 LRA at 12 VDC
• Igniter: 5 A at 12 VDC
• Solenoid Valve: 2 A at 12 VDC
• Lockout Alarm: 2 A at 12 VDC
• Programmed Delays: Valve on delay: 15 seconds, Motor off delay: 2 minutes
