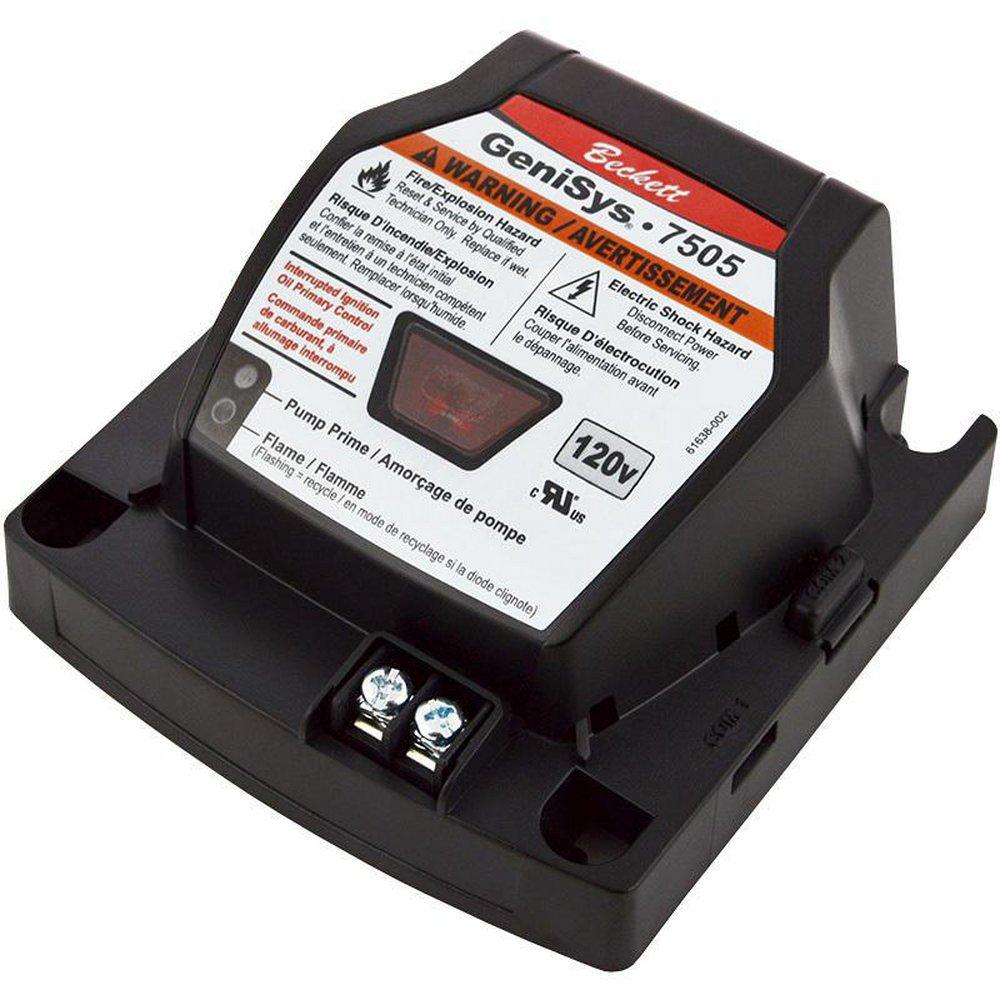

Beckett 7505P152MU GeniSys Advanced Burner Control 120V

Product Description

The Beckett GeniSys 120V Advanced Burner Control, model 7505P152MU, is an essential component for residential and light commercial oil burners. Designed to enhance the functionality and safety of boiler, furnace, and water heater applications, this control unit integrates seamlessly with a cad cell flame sensor.

• Supports both interrupted and intermittent duty ignition.
• Includes 15 seconds pre-purge and 2 minutes post-purge settings.
• Compatible with 24 VAC thermostats including mechanical and many power stealing types.

Product Highlights

Equipped with three status lights for system monitoring and diagnostics, the GeniSys provides a safe and efficient operation. Its robust build ensures resistance against water, making it suitable for various environments. The control features lockout timing of 15 seconds to prevent unnecessary fuel spillage.

Product Information

Standard Information

• Brand: Beckett
• MPN: 7505P152MU
• Functionality: Controls oil burner motor, igniter, and optional solenoid valve

Technical Specifications

• Control Type: Advanced Burner Control
• Voltage: 120V
• Frequency: 60 Hz
• Weight: 1.19 lbs
• Dimensions (H x W x D): 3.3 inches x 5.1 inches x 7.05 inches
• Temperature Range: -40° to 150°F
