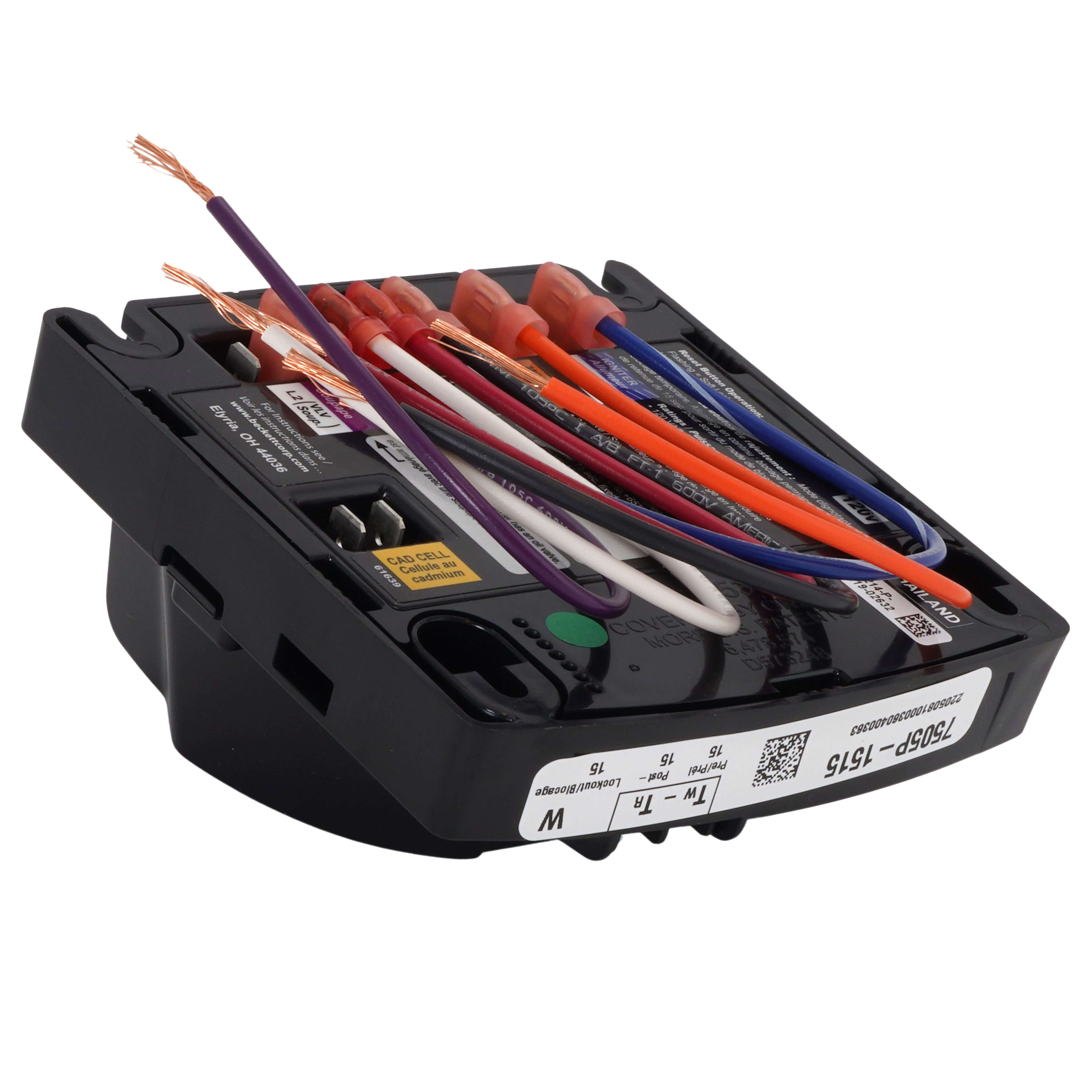

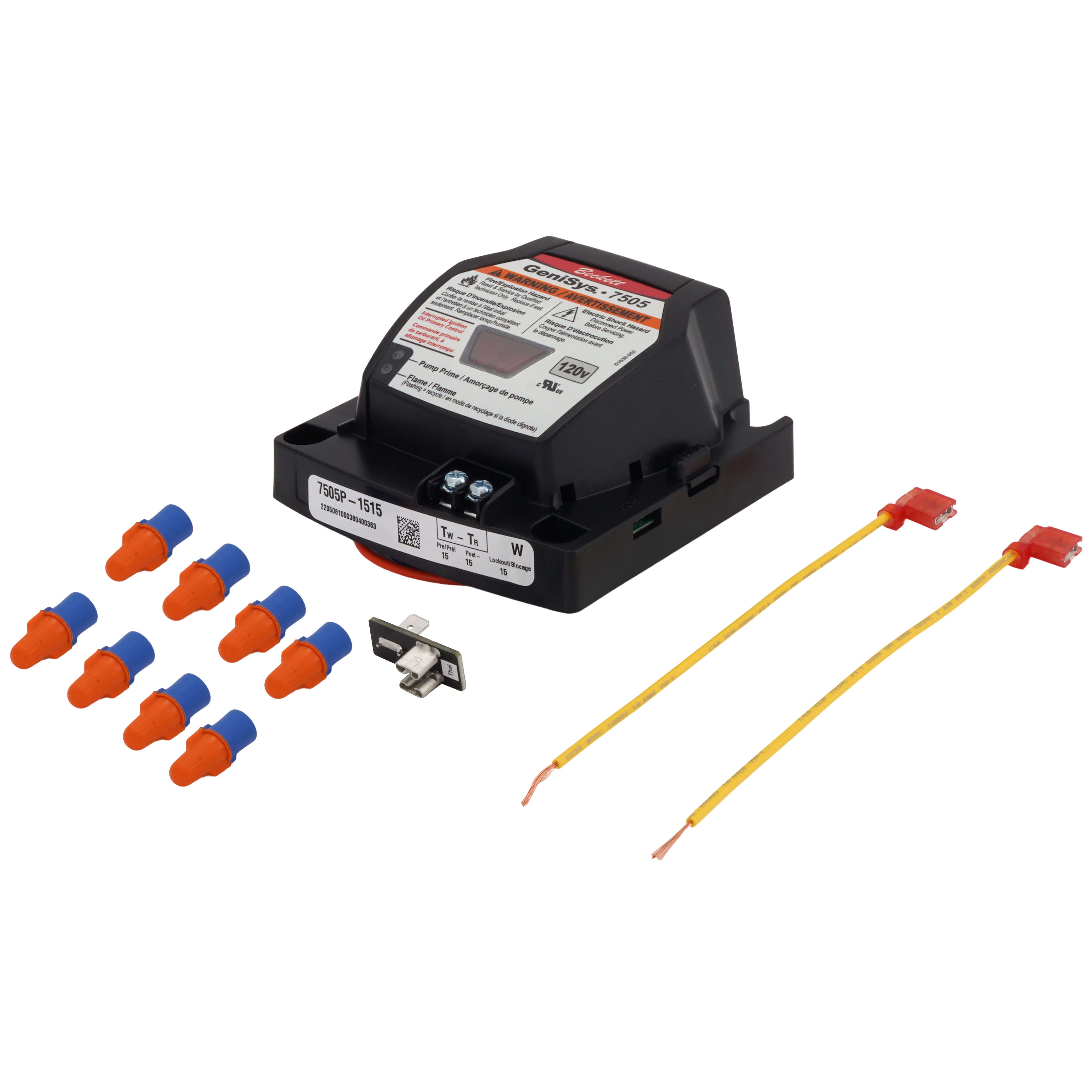

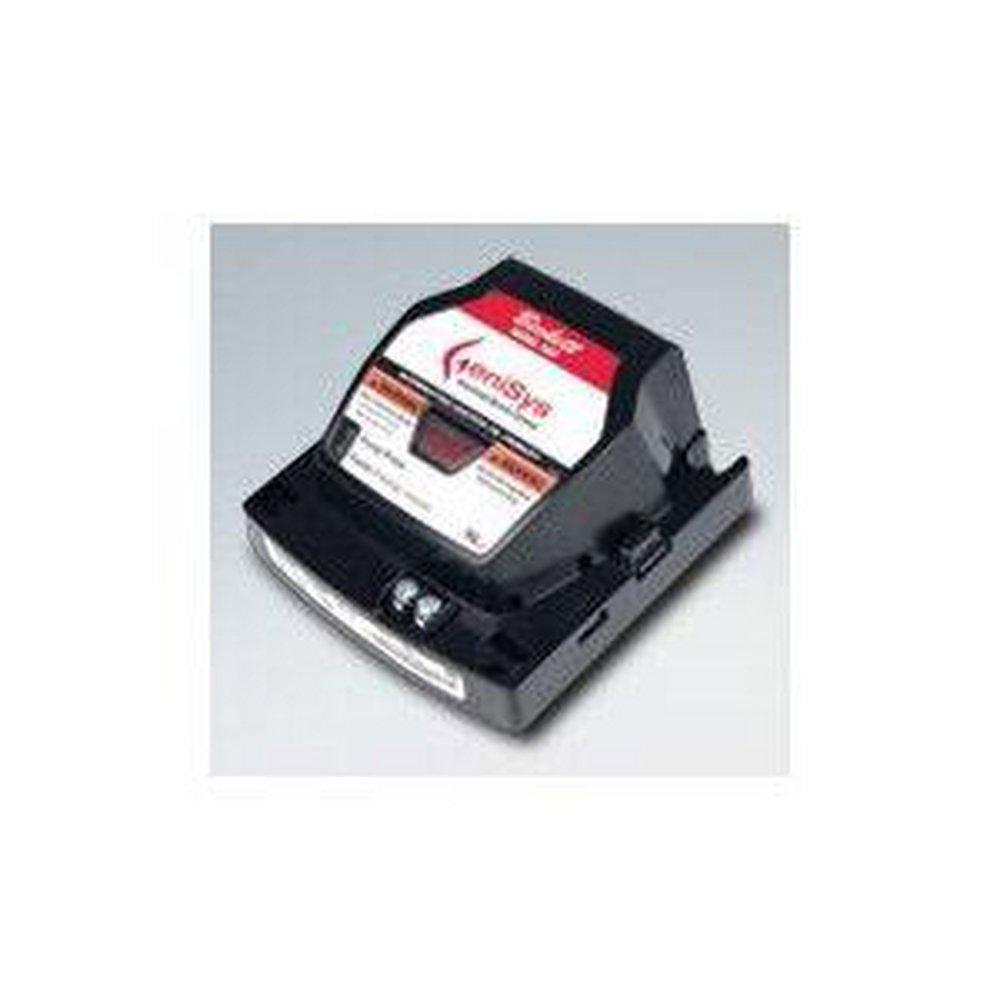

R. W. Beckett 7505P1515U 60 A Advanced Oil Burner Control 120 VAC

Product Description

The R. W. Beckett 60 A Advanced Oil Burner Control, model 7505P1515U, is designed for residential and light commercial oil burner systems. This control unit operates at 120 VAC and is compatible with various applications, including boilers, furnaces, and water heaters. It features customizable pre-time and post-time settings, enabling efficient oil burning operations. The control unit is constructed for water resistance and includes technician pump prime mode for ease of use.

• Compatible with cad cell flame sensors
• Offers limited reset and recycle capability
• Includes three status lights for diagnostics

Product Highlights

The control provides reliable ignition and operation for oil burner systems, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: R. W. Beckett
• MPN: 7505P1515U

Technical Specifications

• Voltage: 120 VAC
• Frequency: 60 Hz
• Lockout Time: 15 seconds
• Pre-purge Time: 15 seconds
• Post-purge Time: 15 seconds
• Dimensions: 6.5 inches (Length) x 5.1 inches (Width) x 3.75 inches (Height)
• Weight: 1.14 pounds
• Country of Origin: USA
