Beckett 52040U GeniSys Lockout Alarm Module HVAC Furnace Parts

Product Description

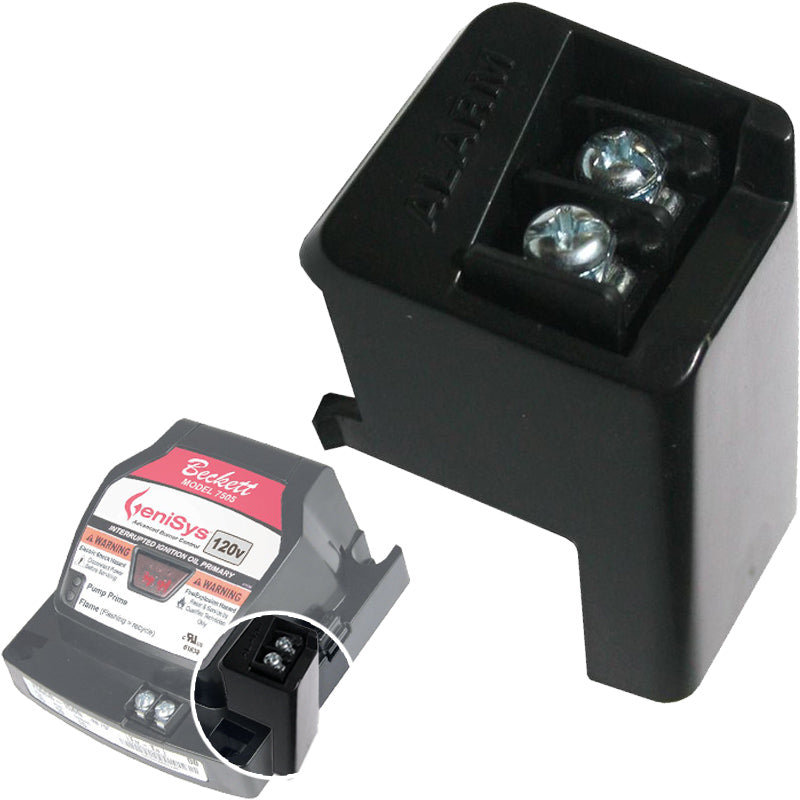

The Beckett 52040U GeniSys Lockout Alarm Module is a crucial device for enhancing safety in heating systems. Designed for use with the Beckett 7505 series GeniSys control, this module is compatible with models 7505A 0000, 7505B 1500, and 7505P 1515, among others.

• Enhances safety by detecting lockout conditions.
• Compatible with numerous Beckett GeniSys controls.
• Suitable for a variety of HVAC applications.

Product Highlights

This lockout alarm module acts as a failsafe, responding to both soft and hard lockouts by closing relay contacts, thereby alerting systems or personnel to potential hazards. Its robust design ensures reliability even in harsh environments.

Product Information

Standard Information

• Brand: Beckett
• Model: 52040U

Technical Specifications

• Switching Current: Maximum 2 Amps, Minimum 5 mA
• Switching Voltage: Maximum 30V, Minimum 5V
• Temperature Tolerance: From -40 degrees Fahrenheit to +150 degrees Fahrenheit
• Humidity Resistance: 5% to 95% RH, non-condensing
