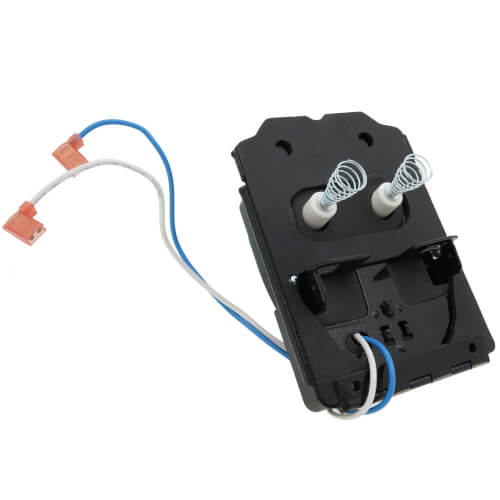

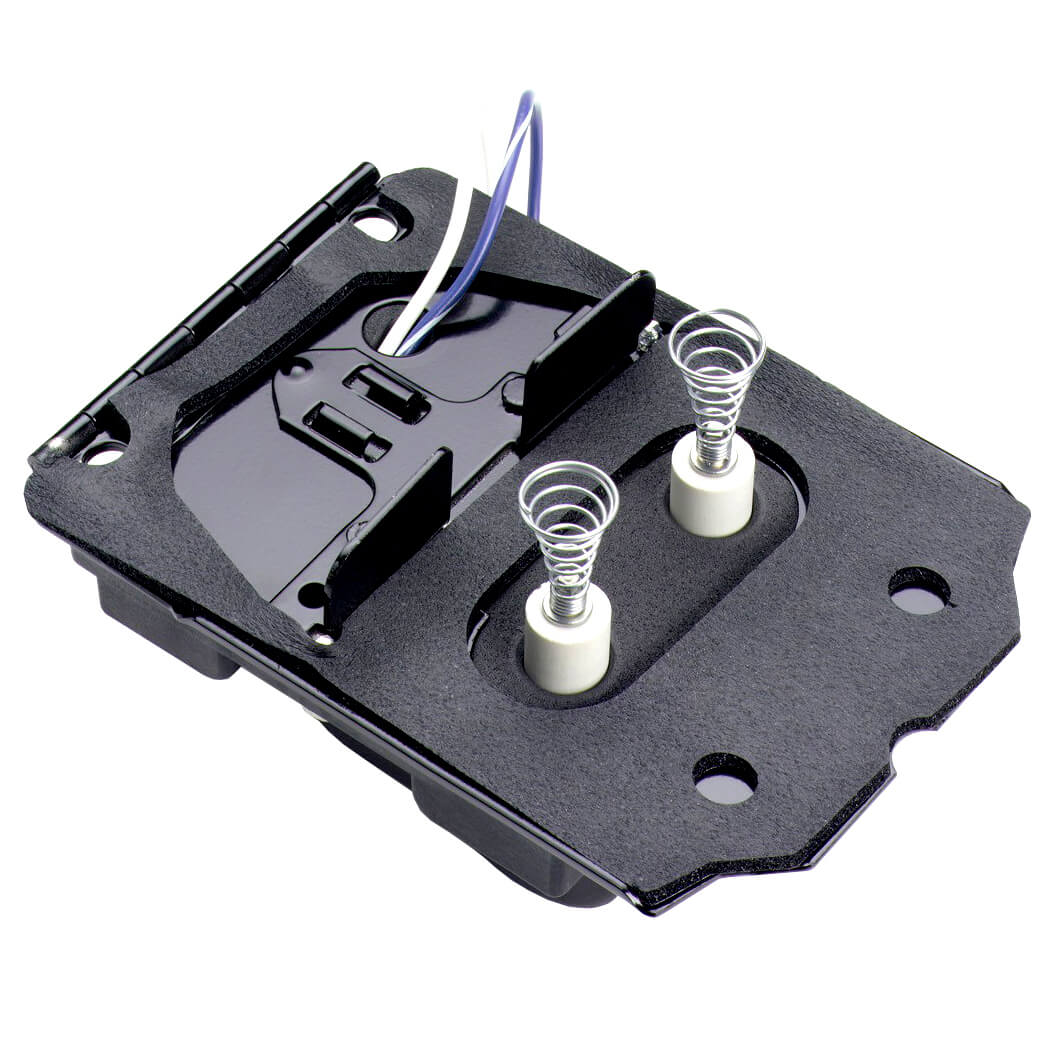

Beckett 51828U Electronic Ignition Transformer Corded Electric with Aero Base

Product Description

The Beckett 51828U Electronic Ignition Transformer is designed for reliable heating ignition in a range of heating applications. Built for both US and Canadian markets, this transformer is UL recognized and offers a powerful 20 kV peak voltage for efficient operation.

• Compact and lightweight at approximately 6.4 pounds, enhancing portability and installation ease.
• Features a high-temperature thermoplastic case for durability and chemical resistance.
• Versatile design compatible with multiple baseplates for broad usage across different systems.

Product Highlights

The Beckett 51828U incorporates advanced features such as vacuum encapsulation with synthetic resin, ensuring excellent moisture resistance and heat dissipation. Its robust case design includes breakout sections for adaptable lead wire management, covered with a protective hood.

Product Information

Standard Information

• Input Power: 120 VAC, 60 Hz, 35 VA
• Operational Output: 6 kV RMS, 20 kV peak, 35 mA RMS
• Operating Temperatures: from -20 to 150 degrees Fahrenheit

Technical Specifications

• Weight: 6.4 pounds
• Dimensions: 1 x 1 x 1 inches
• Certification: UL
• Power Source: Corded Electric
• Compatibility: Adapts to multiple baseplates
