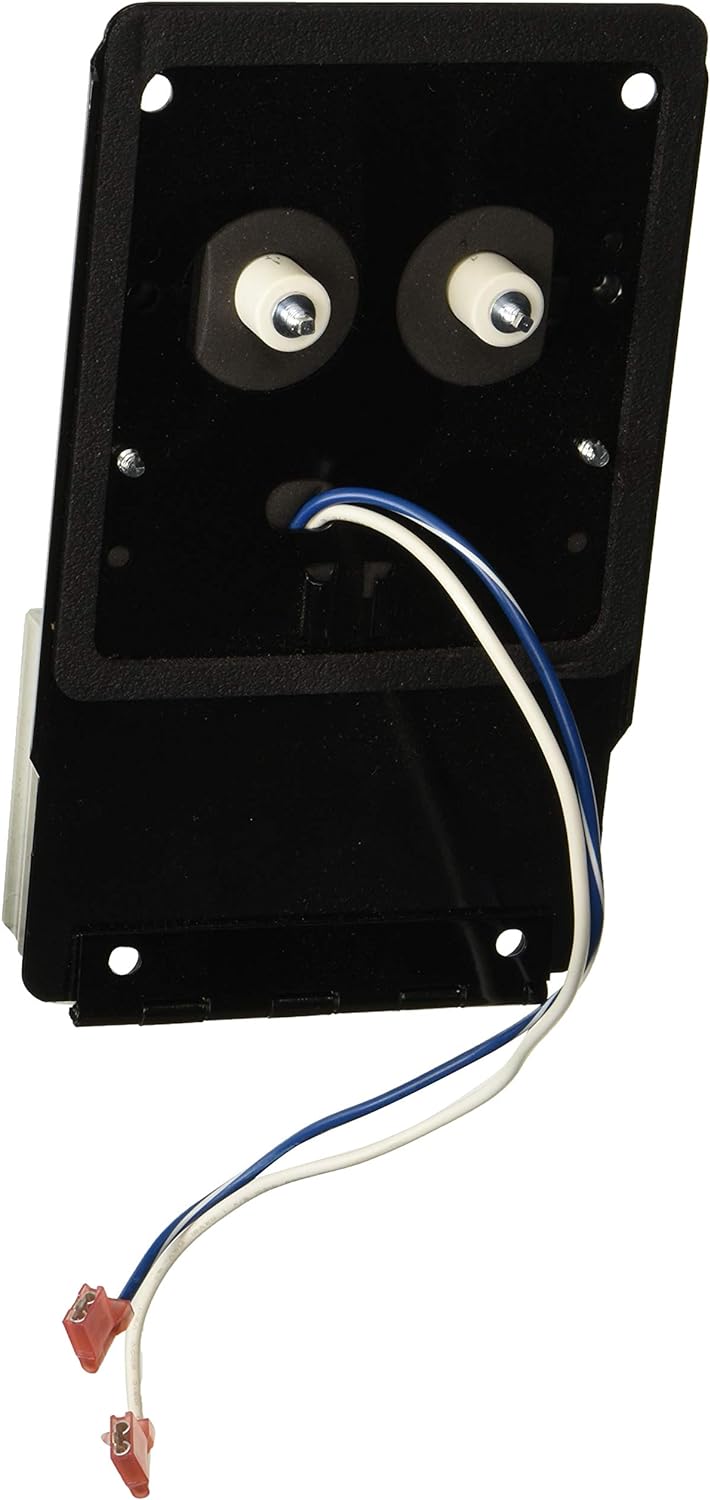

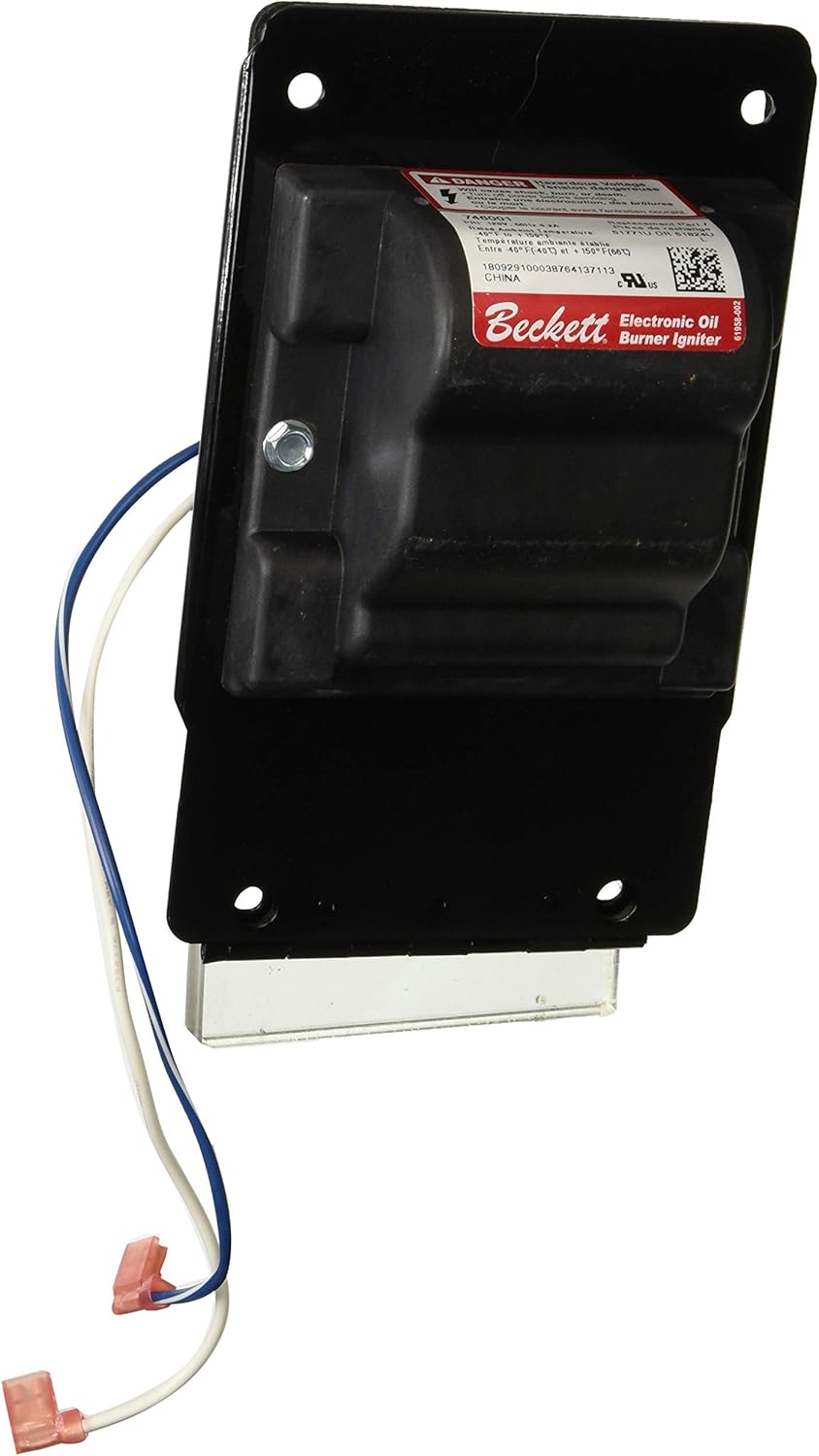

Beckett 51824U Electronic Oil Ignitor S Base for SR, SF, CF500, CF800 Replacement 51824U

Product Description

The Beckett 51824U Electronic Oil Ignitor ensures reliable ignition for heating systems. Perfect for professionals in the HVAC field, this ignitor is compatible with Beckett SR, SF, CF500, and CF800 burner models. Its robust build and efficient design make it a preferred choice for ensuring uninterrupted operation in heating systems.

• UL recognized for safety and reliability in the US and Canada.
• Features a 20 kV peak rating for quick and efficient ignition.
• Encased in a high-temperature resistant thermoplastic.

Product Highlights

This product offers excellent moisture resistance and superior heat dissipation due to its vacuum encapsulation process, utilizing synthetic resin. The compact size and lightweight nature of the ignitor simplify installation and handling.

Product Information

Standard Information

• Brand: Beckett
• MPN: 51824U

Technical Specifications

• Input Voltage: 120 VAC, 60 Hz, 35 VA
• Output Voltage: 20 kV peak, 6 kV RMS
• Operating Temperature: -20 to 150 degrees Fahrenheit
• Dimensions: 5 inches x 5 inches x 5 inches
• Weight: 2.1 pounds
