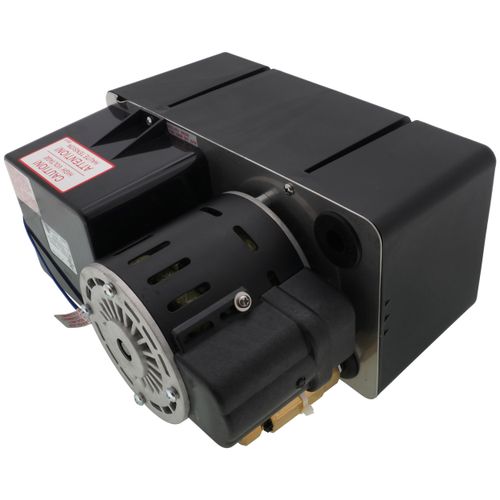

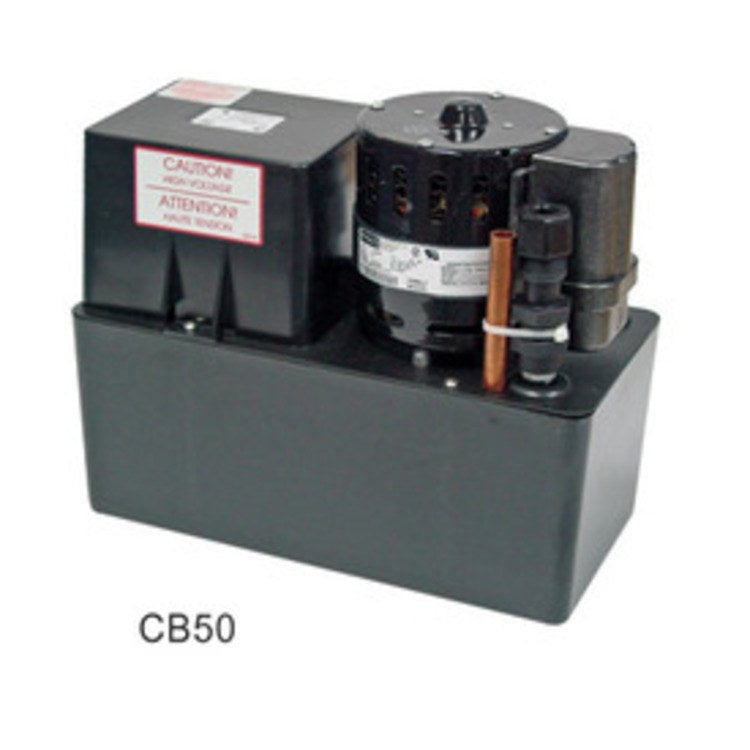

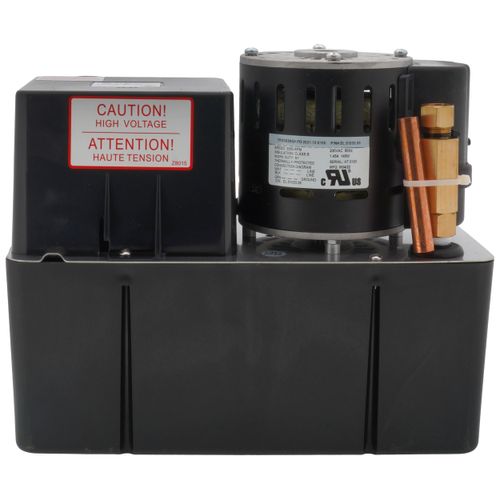

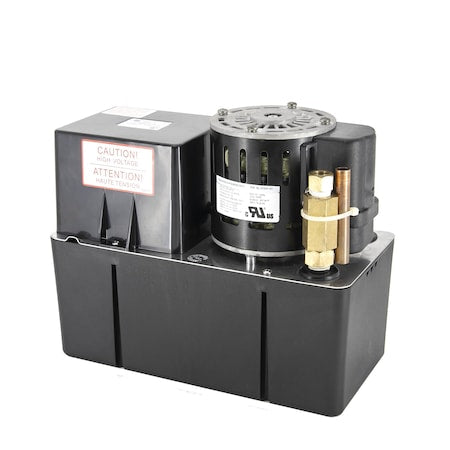

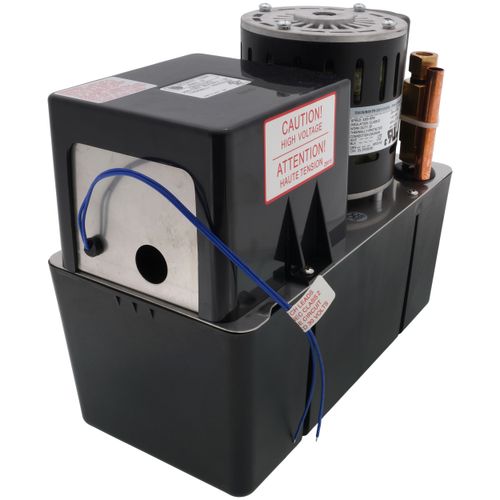

Beckett CB502ULHTS Condensate Pump Large High Temperature 230 Volt 1/2IN Barb

Product Description

The BECKETT CB502ULHTS is a condensate pump designed for heavy-duty industrial applications. This large, high-temperature pump operates at 230V and features a 1/2IN barb end connection and ABS plastic construction. It has a reservoir capacity of 1L and a discharge head of 50FT. Ideal for high lift installations up to 50’ lift.

• Suitable for heavy-duty industrial applications
• Features a built-in safety switch, one-gallon tank, and replaceable check valve
• High temperature unit rated for applications up to 212 degrees F

Product Highlights

The BECKETT CB502ULHTS condensate pump is a robust solution for industrial applications requiring high temperature and high lift capabilities.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: CB502ULHTS
• Country of Origin: China

Technical Specifications

• Brand: Beckett
• Product Type: Large High Temperature
• Voltage: 230V
• End Connection: 1/2IN Barb
• Material: ABS Plastic
• Reservoir Capacity: 1L
• Discharge Head: 50FT
• Application: Heavy Duty Industrial
• Width: 6
• Height: 10.1
• Length: 12
• Capacity: 1 gallon
• Overall Width: 7.4
• Pump Material: Plastic
• Overall Height: 11.9
• Overall Length: 6
• Shutoff Head (ft.): 50'
• Horse Power: 1/5
• Wattage: 360
• Flow at 1 FT Head: 486 GPH
• Amperage: 1.9
• MPN: CB502ULHTS
