Beckett CB252UL Large Condensate Pump 230V 25 Ft Max Lift

Product Description

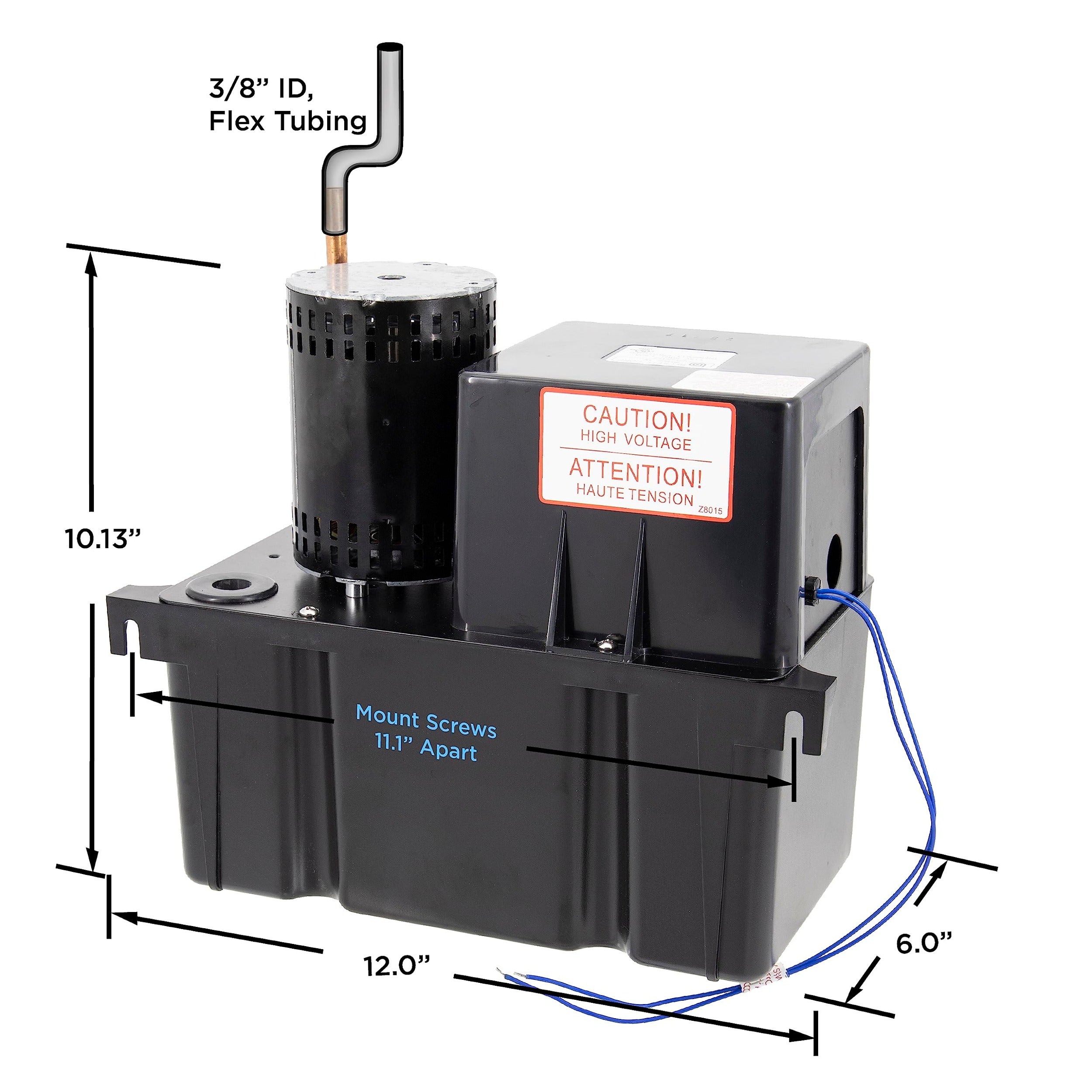

The BECKETT CB252UL is a large-capacity condensate pump built for higher-volume standard condensate removal in HVAC and refrigeration systems. Operating at 230 volts, 60 Hz, and 130 watts, it delivers a maximum lift of 25 feet, making it well suited for installations where the condensate drain must be pumped a significant vertical distance. The unit features a built-in safety switch that shuts down the connected equipment if the tank fills beyond normal operating levels, preventing overflow damage. A 1.0 US gallon plastic tank provides ample reservoir capacity. Designed for quiet, efficient operation, this pump is a reliable choice for licensed HVAC technicians handling commercial or high-demand residential applications.

The CB252UL is intended for standard condensate removal from air handling units, fan coils, mini-split systems, and similar HVAC equipment that produces condensate during normal operation. Its 25-foot maximum lift allows flexible drain routing in mechanical rooms, attic installs, and retrofit scenarios where gravity drainage is not practical. The built-in safety switch provides an added layer of protection, making it appropriate for both new construction and service replacement installs where equipment protection is a priority.

Key Features

• 230V, 60 Hz, 130-watt motor for high-volume condensate removal
• 25-foot maximum lift handles challenging drain routing scenarios
• 1.0 US gallon tank capacity reduces cycling frequency under heavy condensate loads
• Built-in safety switch shuts down connected equipment on high-water condition
• 3/8-inch O.D. copper outlet discharge connection
• 1.1-inch inlet for straightforward connection to condensate lines
• UL and CUL listed for compliance with North American safety standards

Compatibility

Designed as an OEM-style replacement or new-installation condensate pump for higher-volume residential and light commercial HVAC condensate removal applications requiring 230V power supply.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage controls and condensate management systems. Disconnect and lock out power to all connected equipment before installing or servicing the pump. Verify that the discharge line is free of kinks or blockages and that the safety switch is wired into the equipment control circuit so it can shut down the system on a high-water event. Follow all applicable local mechanical codes and manufacturer wiring guidelines during installation.
