Beckett CB121UL Condensate Pump 115Volt 12 feet Lift

Product Description

The BECKETT CB121UL is a 12' condensate pump operating at 115V. Designed for smaller condensate removal, this compact pump is suitable for HVAC and mini-split markets. It features a safety switch and can be placed inside the air conditioner, within a ceiling compartment, or wall-mounted unit. The pump includes dual mounting slots for multi-directional placement applications.

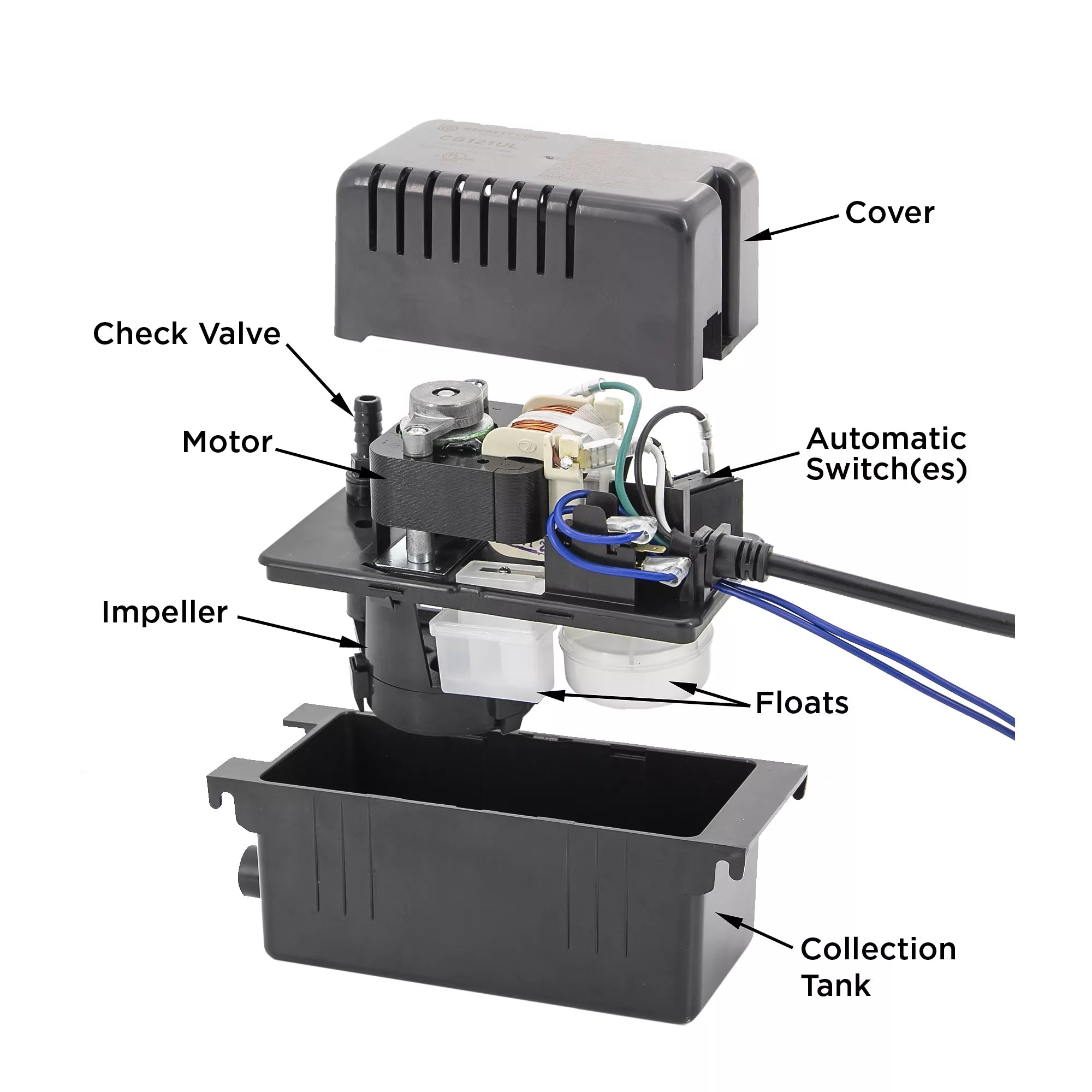

• Features a check valve and safety switch.
• Has a 3/8" barb discharge and 3/4" connection size.
• Maximum temperature of 86°F (30°C).

Product Highlights

Compact condensate pump designed for efficient removal in HVAC and mini-split systems.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: CB121UL
• Country of Origin: CHN

Technical Specifications

• Amps: 0.5
• Brand: Beckett
• Check Valve: Yes
• Connection Size: 3/4"
• Cord Length: 6'
• Cycle/Hertz: 60 Hz
• Discharge: 3/8" Barb
• Float Material: Plastic

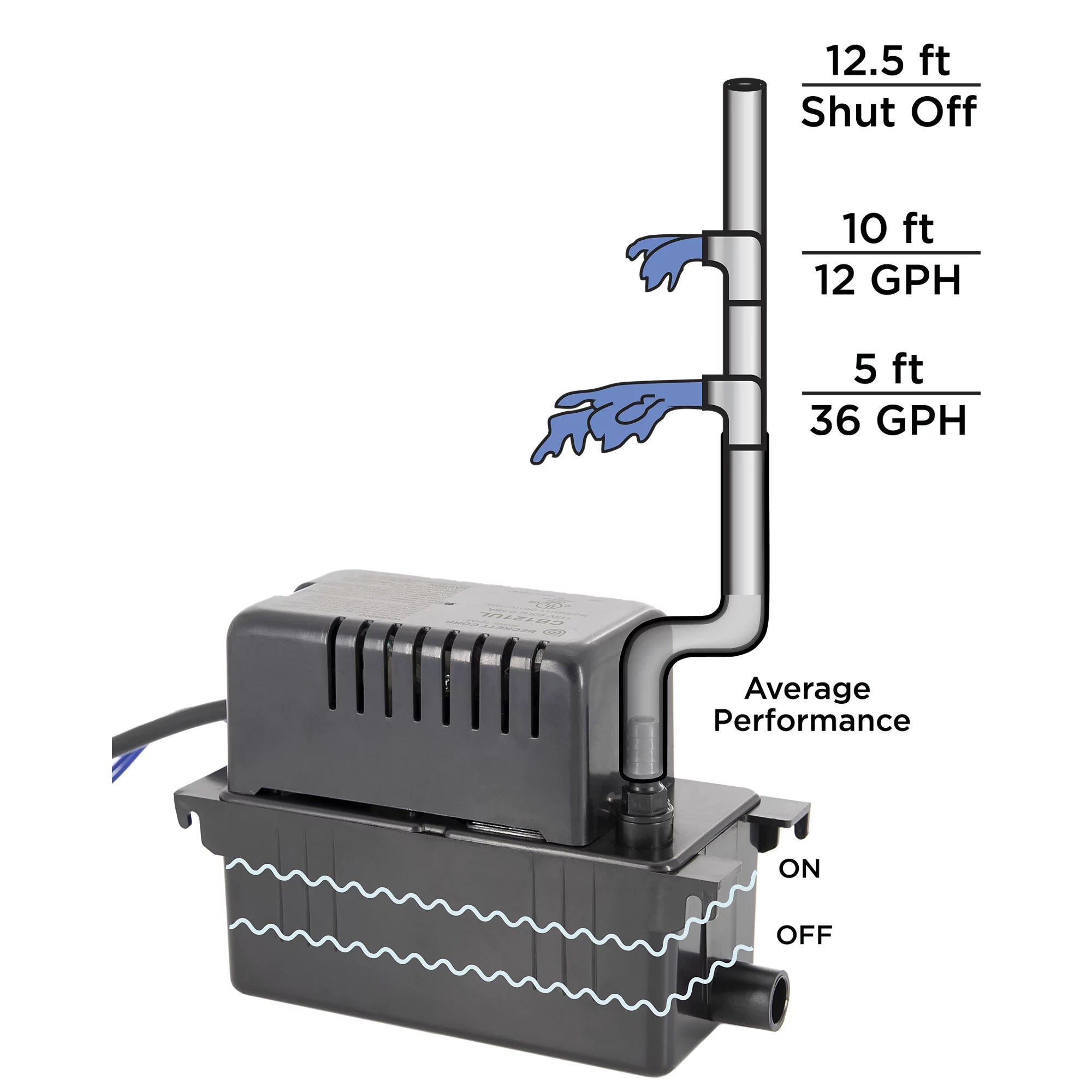

• Gallons Per Hour Of Water: 57 Gallons at 1'
• Height: 5.125
• Length: 7.5
• Maximum Pressure (PSI): 5.4
• Maximum Temperature: 86°F (30°C)
• Motor HP: 1/25 HP
• Prop 65: Yes
• Safety Switch: Yes
• Shut Off (Ft.): 12.5'
• Tank Size: 0.1 Quart
• UL Listed: Yes
• UL Recognized: No
• Voltage: 115 VAC
• Watts: 29
• Width: 3.125
• Type: Electric
• Frequency: 60Hz
• Power: 31 Watts
• Max Lift: 12 ft.
• Outlet O.D.: 3/8"
• Tank capacity: 0.68 US quart
• Side inlet: 3/4" O.D.
• MPN: CB121UL
