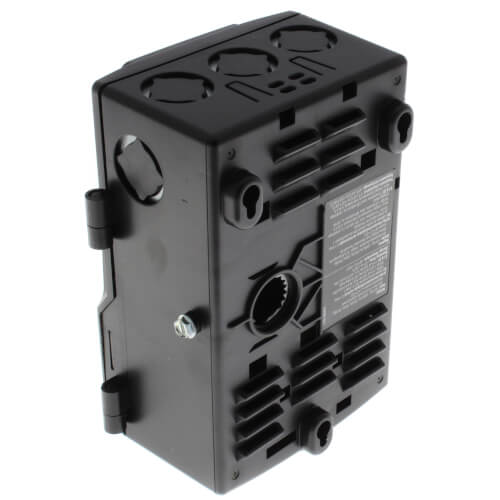

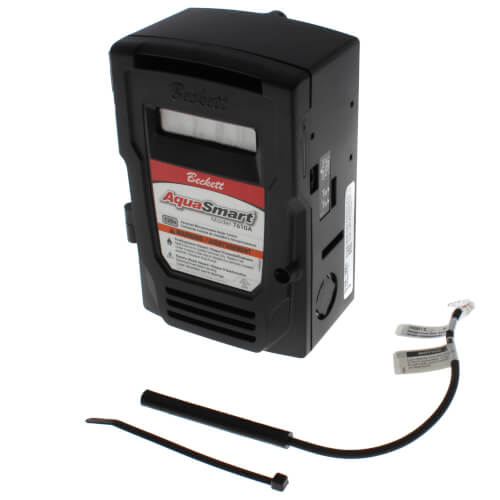

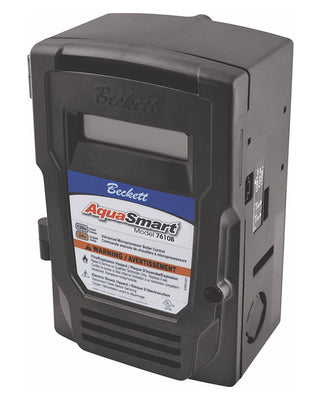

Beckett 7610A0001U AquaSmart Boiler Temp. Control Oil w/ Temp. ONLY Sensor

Product Description

The Beckett 7610A0001U AquaSmart Boiler Temperature Control is an essential component for residential and light commercial boiler systems. It features a temperature-only sensor and is compatible with 120V oil burner circuits, replacing the older 7600A0001U model.

• Beckett HeatManager dynamic temperature reset
• Energy saving circulator-off delay
• Expanded wiring box for easy installation

Product Highlights

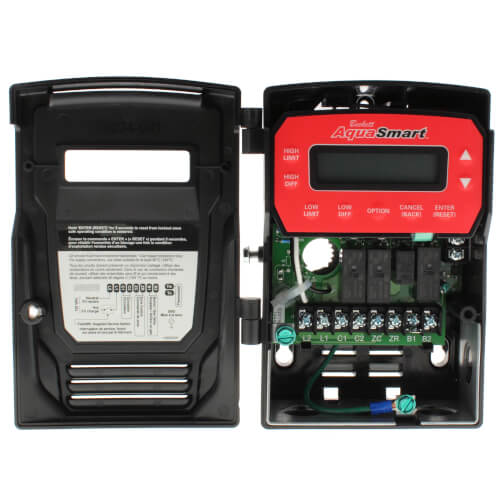

This control system helps reduce fuel consumption by up to 20% when using the HeatManager feature. It includes a backlit LCD, programming touch pad, and memory storage for system history, aiding in diagnostic troubleshooting. The AquaSmart is compatible with cold-start systems and offers optional wireless outdoor temperature reset.

Product Information

Standard Information

• MPN: 7610A0001U
• Brand: Beckett

Technical Specifications

• Voltage: 120V
• Amperage: 20
• Weight: 2.525 lbs
• Fuel Type: Oil
• Operating Temp Range: -4 to 150 degrees Fahrenheit
• Shipping Depth: 11.9 inches
• Shipping Width: 7.3 inches
• Shipping Height: 5.3 inches
