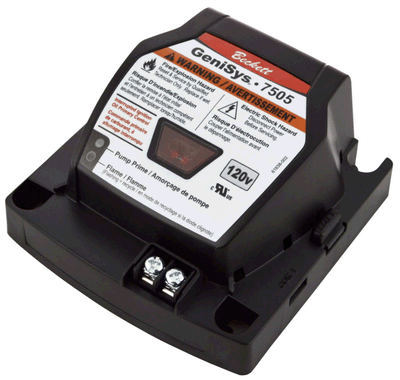

Beckett 7505p452MU 120V GeniSys Control w/ 15 Sec. Pre-Purge, 2 Min. Post-Purge Lockout
Overview:
The Beckett GeniSys Advanced Burner Control is a 120 Vac primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. The GeniSys is used with a suitable cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. It has 24 Vac thermostat inputs compatible with both on/off and power stealing thermostats. It can provide interrupted or intermittent duty ignition, and has a 15-second lockout time.
Features and Benefits:
• Thermostat and boiler control compatible
• Programmable valve-on delay and motor-off delay
• Three indicator lights for system monitoring and diagnostics
• Two communication ports for adding alarm contacts, programming display, and/or future wireless communications
• Welded relay protection with redundant motor relays
• Limited reset and limited recycle
• Sleek, modern design
• Technician Pump Prime mode
• 5 year warranty
Replaces 50147 7575P452MU
Technical Information
• Voltage: 102 to 132 VAC
• Current: 100 mA plus burner motor, igniter, and valve loads
• Frequency: 60 Hz
• Motor: 120 VAC, 10 full load amps (FLA), 60 locked rotor amps (LRA)
• Igniter: 120 VAC, 3 A @ 0.7 PF min
• Solenoid Valve: 120 VAC, 1 A @ 0.7 PF min
• Thermostat Anticipator Current: 0.1 A
• Thermostat Voltage: 24 VAC
• Storage and Operating Ambient Temperature: -4°F to +150°F (-20°C to +65°C)
• Moisture: 5-85% RH, non-condensing and non-crystallizing
• Approvals: Underwriters Laboratory Recognition per UL372 and UL1998, and CSA-B140.0
