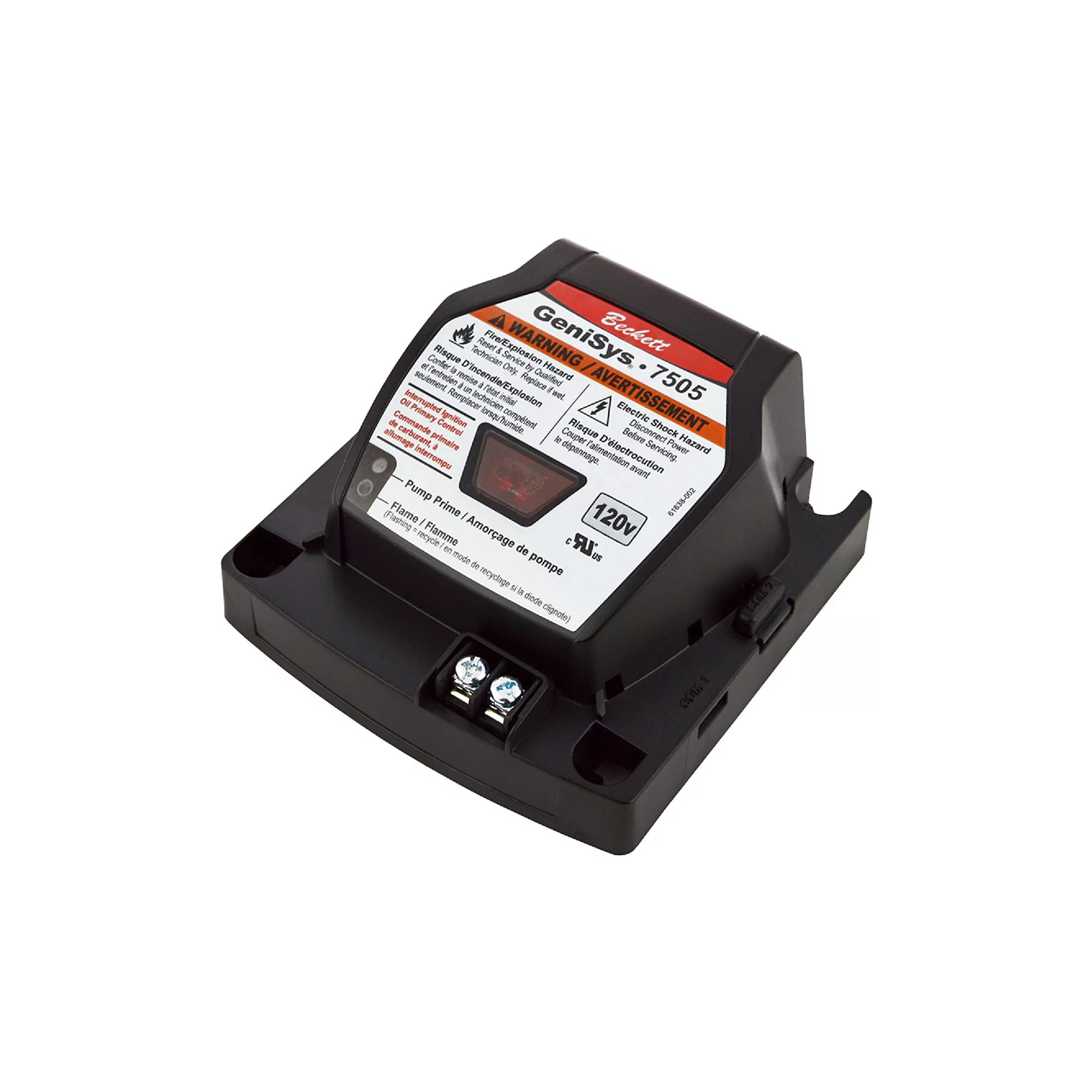

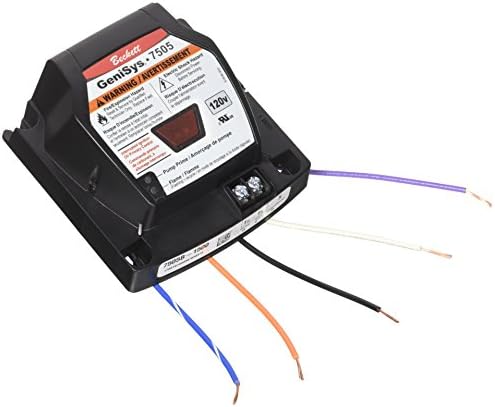

Beckett 7505B1500U Genisys Oil Burner Control 120V

Product Description

The Beckett 7505B1500U Genisys Advanced Burner Control is a 120 Vac primary safety control for residential and light commercial oil burners used in boiler, furnace, and water heater applications. It uses a cad cell flame sensor to control the oil burner motor, igniter and optional solenoid valve. Lockout time is 15 seconds and valve-on delay time is 15 seconds.

• Thermostat and boiler control compatible
• Programmable valve-on delay and motor-off delay
• Three indicator lights for system monitoring and diagnostics

Product Highlights

Features communication ports for adding alarm contacts, programming display, and future wireless communications. Includes welded relay protection with redundant motor relays, limited reset, and limited recycle.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: 7505B1500U

Technical Specifications

• Brand: Beckett
• MPN: 7505B1500U
• Phase: Single
• Stage: Single
• Width: 5
• Height: 3.3
• Length: 7
• Prop 65: Yes
• Voltage: 120 VAC
• CSA Listing: Yes
• Cycle/Hertz: 60 Hz
• UL Recognized: Yes
• Full Load Amps: 10
• Operating Temperature Range: -40°F to 150°F (-40°C to 65.5°C)
• Manufacturer: R.W. Beckett Corp.
• Electrical Connection Type: 102 to 132 VAC
• Item model number: 7505B1500U
• Item Package Quantity: 1
• Included Components: Burner Control
• Batteries Included?: No
• Batteries Required?: No
