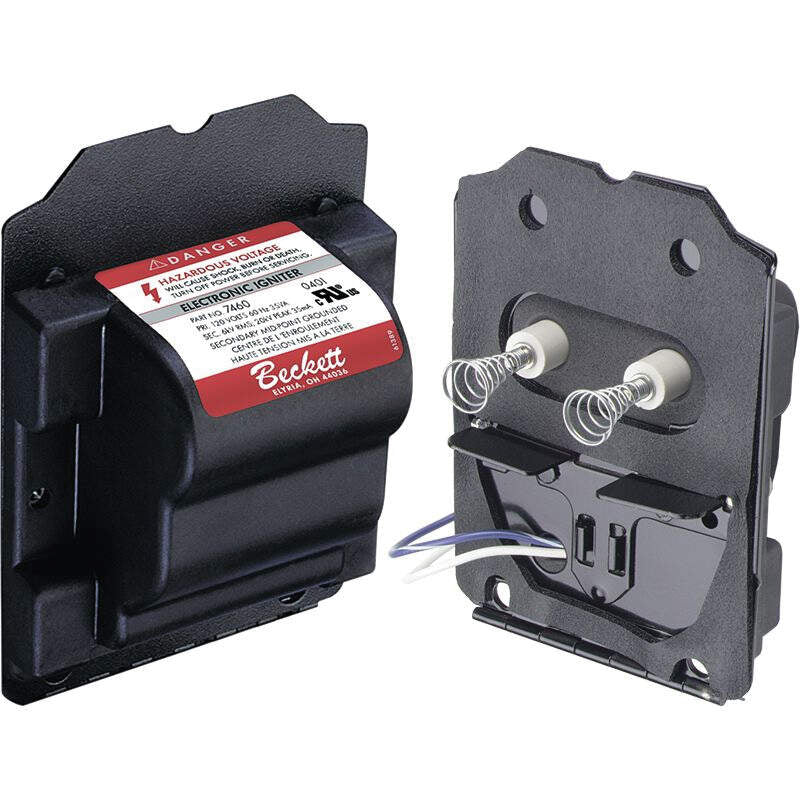

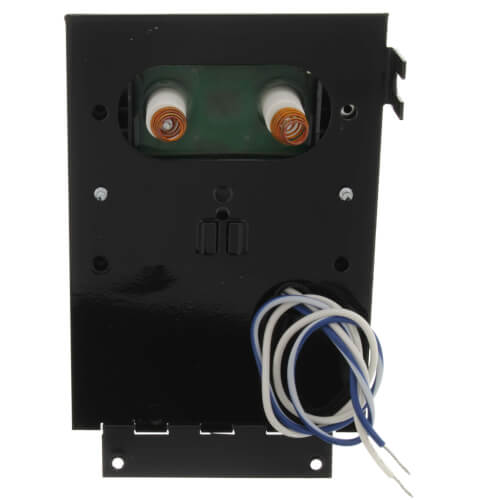

Beckett 51825U Ignitor Wayne M 120V (Single) Beckett-13127

Product Description

The Beckett 51825U is an electronic ignitor designed for Wayne M series oil burner and furnace ignition systems. It accepts 120 VAC at 60 Hz and provides a high-voltage output rated at 6 kV RMS / 20 kV peak with a 35 mA output current. The module is vacuum encapsulated in synthetic resin, enclosed in high-temperature thermoplastic, and is UL recognized for use in ignition applications.

• Input: 120 VAC, 60 Hz; input power approximately 35 VA; output 6 kV RMS / 20 kV peak at 35 mA
• Vacuum encapsulation and high-temperature thermoplastic case for moisture resistance, heat dissipation, and wire protection
• UL recognized; adapts to Wayne M base and fits multiple vendor transformer baseplates for ignition applications

Product Highlights

Electronic ignitor for Wayne M series; 20 kV peak, 35 mA, vacuum encapsulated, UL recognized.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: 51825U
• Country of Origin: United States

Technical Specifications

• Brand: Beckett
• Manufacturer Part Number: 51825U
• Input Voltage: 120 VAC
• Frequency: 60 Hz
• Input Power: 35 VA
• Output Voltage: 6 kV RMS / 20 kV peak
• Output Current: 35 mA RMS
• Secondary Rating: 40 VA
• Secondary Configuration: Mid-point ground
• Ambient Operating Temperature: -20 to 150 F
• Storage Temperature: -40 to 150 F
• Weight: Approx. 1.1 lb
• Mounting Type: Wayne M base; adapts to multiple baseplates
• Enclosure Material: High-temperature thermoplastic
• Encapsulation: Vacuum encapsulation with synthetic resin
• Certifications: UL recognized in the United States and Canada
• Compatible With: Wayne M / MH series burners
• Application: Oil burner and furnace ignition
• Country of Origin: United States
