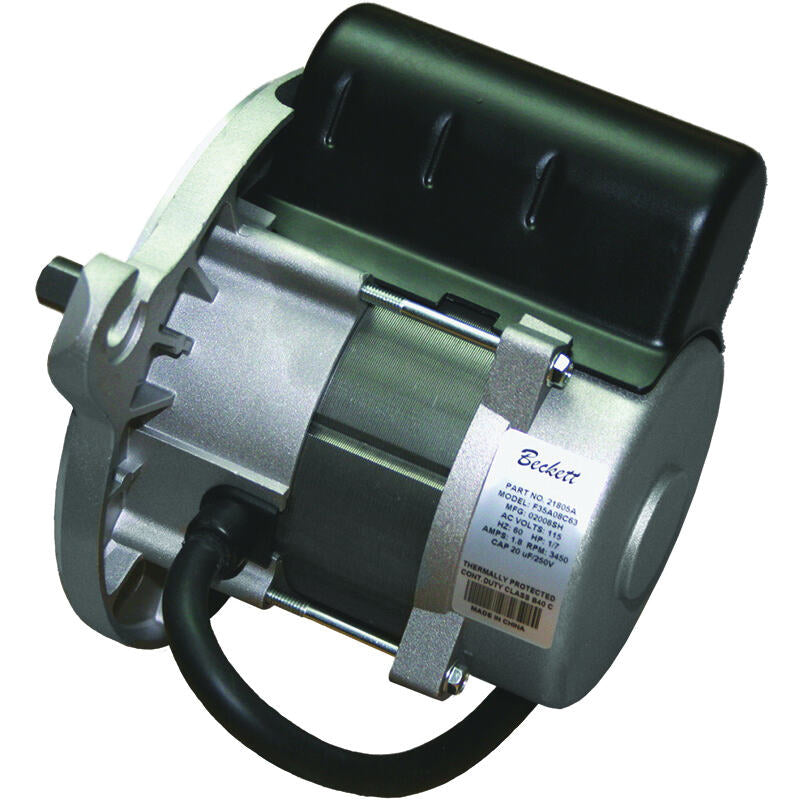

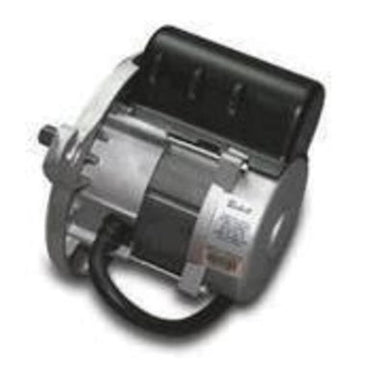

Beckett 21805U Oil Burner Motor 1/7 HP 120 VAC 3450 RPM CF375

Product Description

The Beckett 21805U oil burner motor features a permanent split capacitor for lower amp draw and cooler operation. It operates at 120V and 3450 RPM with a 1/7 HP. Designed with ball bearings for extended life and a manual reset thermal protector. It is suitable for Beckett AFG oil burners.

• Permanent Split Capacitor: Lower amp draw, cooler operation, few failures
• Ball Bearings: Longer life
• Use For Beckett AFG

Product Highlights

The Beckett 21805U is a 1/7 HP oil burner motor with a permanent split capacitor and ball bearing construction.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: 21805U
• Country of Origin: United States

Technical Specifications

• Electrical Input: 115V / 60Hz
• Current Draw: 1.7 FLA
• Speed: 3,450 rpm
• Construction Type: PSC (Permanent Split Capacitor)
• Bearing System: Ball bearing
• Thermal Protector: Manual reset
• Mounting frame: NEMA 48M
• Lamination width: 3.7
• Body length: 4.56
• Body width: 3.93
• Manufacturer: R.W. Beckett Corp.
• Brand: Beckett
• MPN: 21805U
• Horsepower: 1/7 HP
• Maximum Speed: 3450 rpm
• Voltage: 120V
• Hertz: 60HZ
• Frequency: 60Hz
• Product Type: Permanent Split Capacitor
• Item Number: 21805U
• Used on: AF/AFG/NX/M Flange Burner
