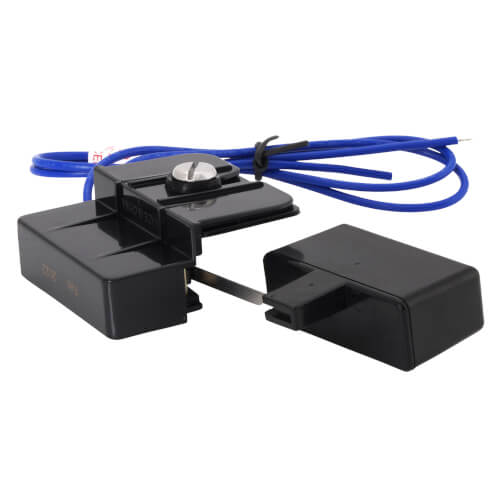

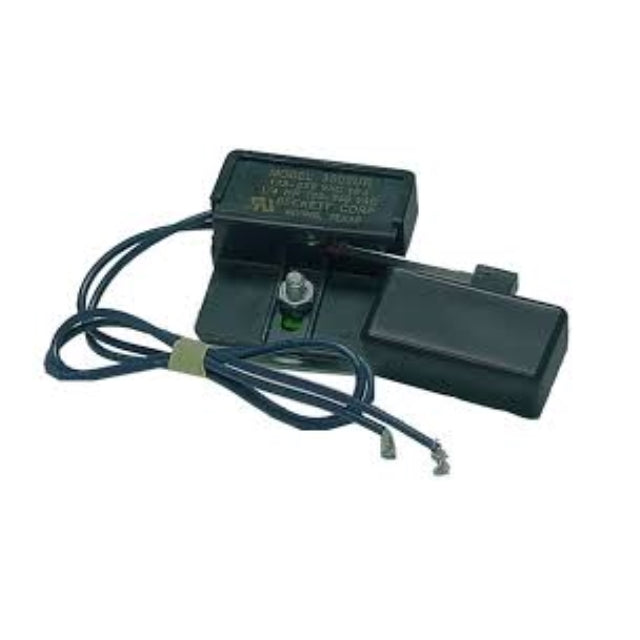

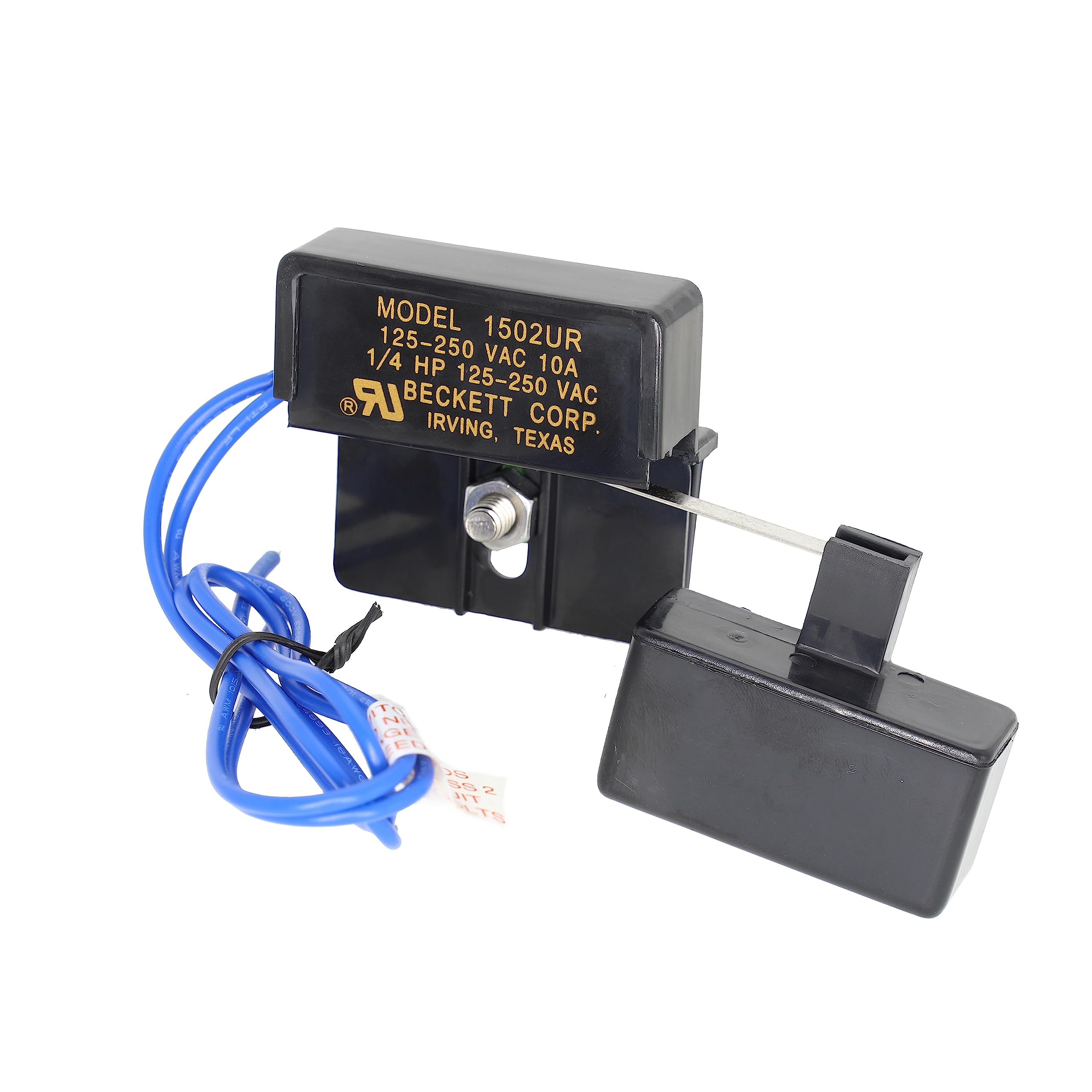

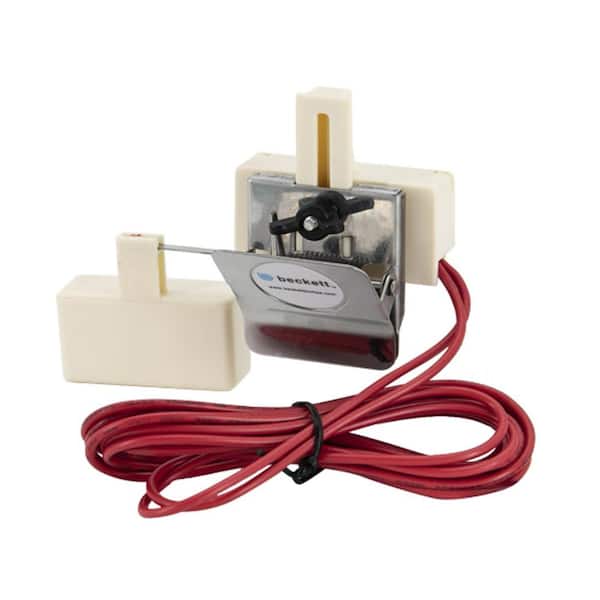

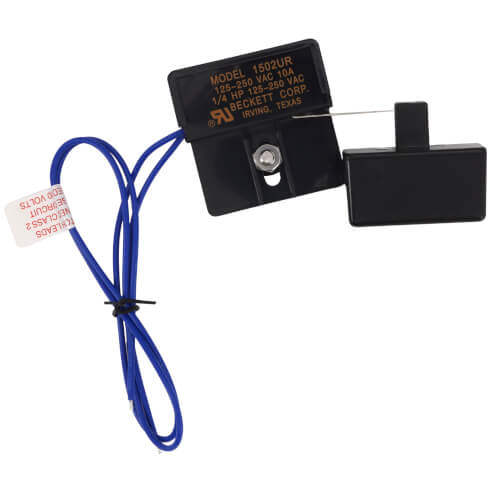

Beckett 1502UR Drain Pan Safety Switch 125-250 VAC with Drill Clamp

Product Description

The BECKETT 1502UR drain pan safety switch provides a reliable way to monitor high water levels. The switch can be wired to turn off air conditioning or furnace equipment, or to sound an alarm if the water level is too high. It operates at 125-250 VAC and 10 Amp and includes a drill clamp for easy installation.

• Float actuated drain pan safety switch
• 125-250 VAC, 10 Amp
• 17" Wire length

Product Highlights

This safety switch monitors water levels and can be wired to turn off equipment or sound an alarm.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: 1502UR

Technical Specifications

• Activation: Opens Circuit
• Voltage: 125-250 VAC
• Amperage: 10 Amp
• Wire length: 17"
• Switch Type: Single pole, double throw, single break snap action
• Contacts: Silver
• Horsepower: 1/4 HP
• Manufacturer: Beckett Pumps
• Model / MPN: 1502UR
• Application: Condensate (HVAC), Drain Pan (HVAC)
• Item Height (In): 2.7 In
• Item Length (In): 3 In
• Item Width (In): 1.1 In
• Voltage Rating: 125 to 250 Volt AC
• Power Rating: 1/4 HP
• Approval: UL
• Current Rating: 10 Amp
• Wire Length: 17 Inch
