BEA INCORPORATED 10LPR36HW 36IN Vertical Actuation Bar/Low Profile Push Plate Hard-Wired

Product Description

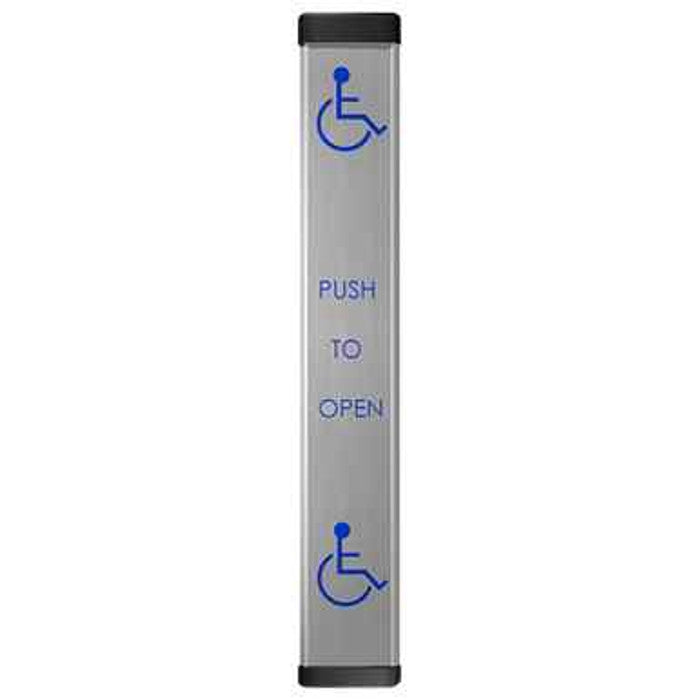

The BEA INCORPORATED 10LPR36HW is a hard-wired, low-profile push plate designed to improve accessibility and ensure compliance with ADA standards. This product features clear indicators, including a blue Handicap logo and inchPush to Openinch text. The activation area measures thirty-six inches in length and six inches in height, providing an all-active surface for easy access from any angle. Its durable construction includes a stainless steel faceplate, which is resistant to rust, corrosion, and fingerprints, thanks to a clear powder coat finish.

• Hard-wired low-profile push plate
• Thirty-six inches by six inches all-active activation area
• Durable stainless steel faceplate with powder coat finish

Product Highlights

Ideal for automatic pedestrian door systems in both commercial and residential settings.

Product Information

Standard Information

• Brand: BEA INC
• MPN: 10LPR36HW

Technical Specifications

• Contact: SPST N.O.
• Switching Voltage: 0.1 to 50 VDC
• Switching Capacity: 1 Watt
• Switching Current: 0.005 to 100 mA DC
• Operating Temperature: -32°F to +212°F
• Compliance: CBC 2013, 11B-404.2.9 Exception 2c
• Plate Dimensions: 36 inches high x 4.5 inches wide
• Activation Type: All-active surface activation
• Connection Type: Hardwired for direct power and signal transmission
• Material: Stainless steel faceplate with engraved text and accessibility logo
• Mounting Options: Compatible with surface-mount or flush-mount boxes
• Finish: Brushed stainless steel finish
• Area Rating: Suitable for indoor and outdoor use
• Applications: Designed for use with automatic pedestrian door systems
