Description

Product Description

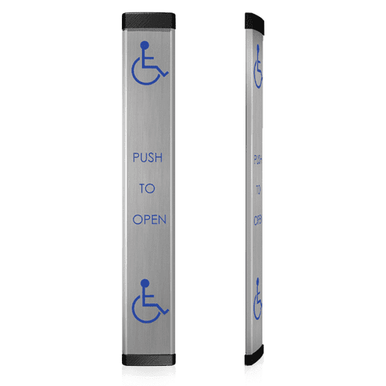

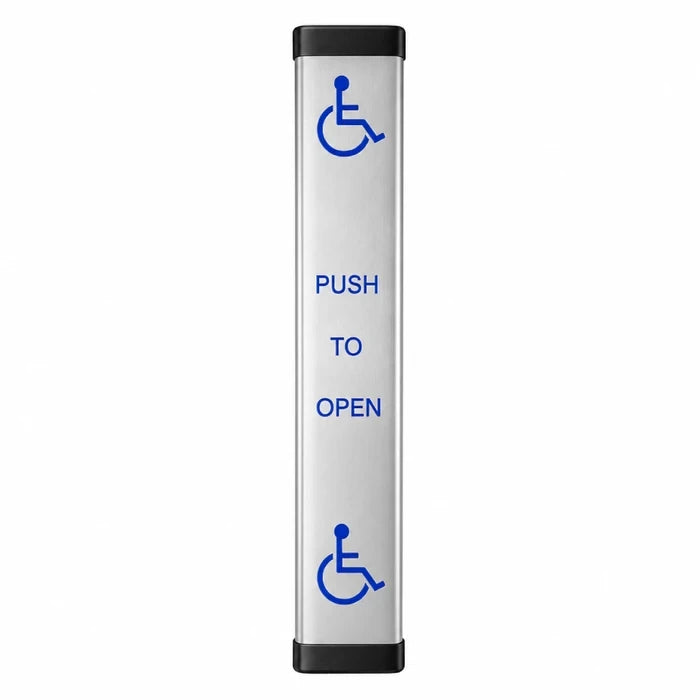

Bea 10LPR36-900 is a 36-inch all-active push plate actuator with a built-in 900 MHz transmitter. The stainless steel faceplate offers a full 36 x 6 inch activation area using four redundant membrane switches; the unit is low-profile (1 inch) and mounts to a wall or commercial bollard. It supports optional hardwired or alternate wireless frequencies and is listed to UL325 for US and Canada.

  • Full-surface 36 x 6 inch activation with four redundant membrane switches for actuation at high and low reaches
  • Integrated 900 MHz wireless transmitter (receiver sold separately); optional hardwired or 300/433 MHz configurations
  • Stainless steel faceplate with clear powdercoat finish, low-profile 1 inch depth; wall or bollard mounting; UL325 listed

Product Highlights

36-inch full-length wireless push plate with all-active surface and UL325 listing

Product Information

Standard Information

  • Brand: BEA
  • Manufacturer Part Number: 10LPR36-900
Technical Specifications
Brand
BEA
Model / MPN
10LPR36-900
Series
LPR36
Product Type
Full-length actuator / Jamb push plate
Activation area
36 x 6 inches
Product Size
36"
Dimensions
36" (H) x 6" (W) x 1" (D)
Thickness / Profile Depth
1 inch (low profile)
Faceplate Material
304 Stainless Steel
Finish
Clear powdercoat
Switch coverage
All-active entire surface with four redundant membrane switches
Contact Configuration
SPST N.O.
Switching Voltage
0.1 - 50 VDC (see notes — range and accompanying current/capacity appear inconsistent)
Switching Current
0.005 - 100 mA DC (see notes — lower bound unit likely incorrect or a typo)
Switching Capacity
1 W
Wireless Frequency
900 MHz (built-in transmitter)
Wireless Options
Optional 300 MHz or 433 MHz configurations; receiver sold separately
Hardwired Option
Optional hardwired
Transmitter Housing
ABS plastic top end-cap
Internal Components
Corrosion-resistant aluminum
Base Material
6063 Aluminum
Switch Actuator Material
Nylon 66
End Cap Material
UL94 ABS
Hardware
Stainless steel
Operating Temperature
-32 to 212 F (-35 to 100 C)
Mounting
Wall or bollard
Listings / Compliance
Listed to UL325 (US & Canada); exceeds California Building Code Section 1117B.6
Compatible Receivers
Examples: 10RD900 industrial receiver module, 10TD900TR touchless retrofit transmitter
