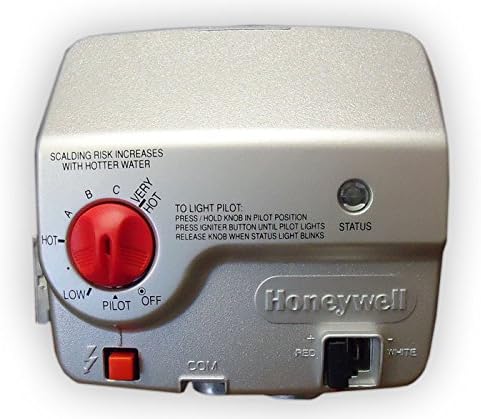

Bradford White 239-48795-01 - BDW239-48795-01 Icon (239-48795-01)
Buy a system bundle and save up to 10%!
SHOP ALL BUNDLES WITH THIS PRODUCT INCLUDED
Secure
Ordering
Easy
Returns
100% Fit
Guarantee
Expert
Advice
Fast
Shipping
Product Information
- Ignition Control Module
- Type Universal, Direct Hot Surface
- Fuel Type Natural/Liquid Propane Gas
- Flame Sense Type Single or Dual Rod
- Ignition Source Line Voltage Hot Surface Element
- Ignition Sequence 1 or 3-Trial
- Ignition Trial Time 4/7 Second
- Prepurge Time 32 Second
- Flame Failure Response Time 1.5 Second
- Valve Rating 2 Amp at 24 Volt AC
- Power Rating 24 Volt AC at 50/60 Hertz
- Size 4-1/16 Inch Width x 1-15/16 Inch Depth x 5-1/4 Inch Height
- Temperature Rating -40 to 175 Deg F
- Approval CSA
- Lockout Timing 4 or 7 Second
