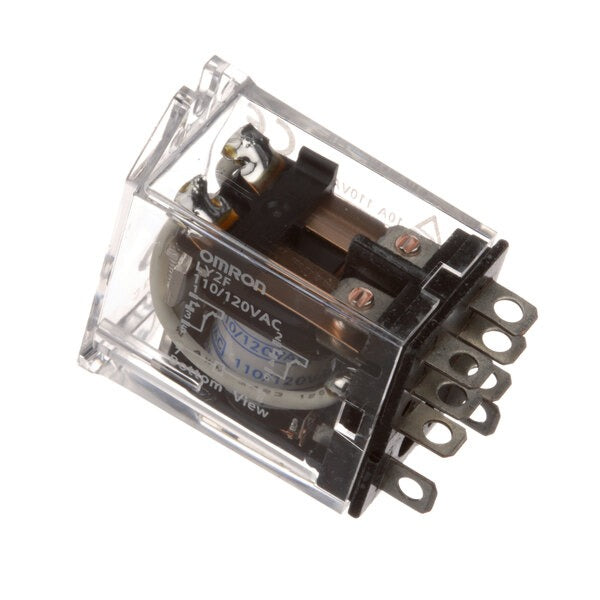

Baxter 01-100V6-00271 Dpdt Relay 0.5 Hp 120VAC

Product Description

The BAXTER 01-100V6-00271 is a double-pole double-throw (DPDT) relay rated for 1/2 HP loads at 120 volts AC. Relays of this type act as electrically operated switches, using a low-voltage control signal to open or close two independent circuits simultaneously. This relay is suited for motor control and switching applications in commercial food equipment and light industrial systems. A qualified technician handles installation as part of a broader electrical control circuit service.

This DPDT relay is appropriate for applications requiring simultaneous control of two separate circuit paths, such as motor reversing, load switching, or interlock logic in commercial equipment. It is commonly installed in control panels and equipment wiring harnesses where 120 volt AC coil operation is required and a 1/2 HP motor load rating meets the application demand.

Key Features

• Double-pole double-throw (DPDT) contact configuration for simultaneous two-circuit switching
• Rated for 1/2 HP motor loads at 120 volts AC coil voltage
• Compact form factor suitable for control panel and equipment integration
• OEM-style replacement for maintaining original equipment electrical performance

Compatibility

Designed as an OEM-style replacement relay for commercial equipment applications requiring a DPDT configuration with 120 volt AC coil voltage and a 1/2 HP motor load rating.

Installation Notes

Installation should be performed by a licensed electrician or qualified service technician familiar with commercial equipment control circuits. De-energize and lock out the equipment at the main power source before removing the existing relay or making any wiring connections. Verify coil voltage and contact ratings match the circuit requirements before energizing. Follow applicable NEC guidelines for control wiring and panel work.
