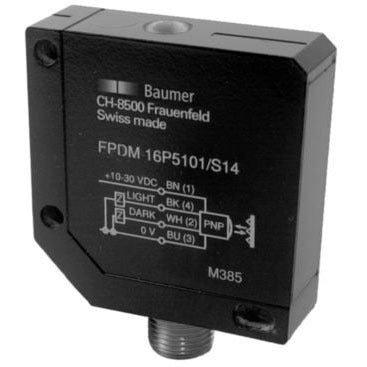

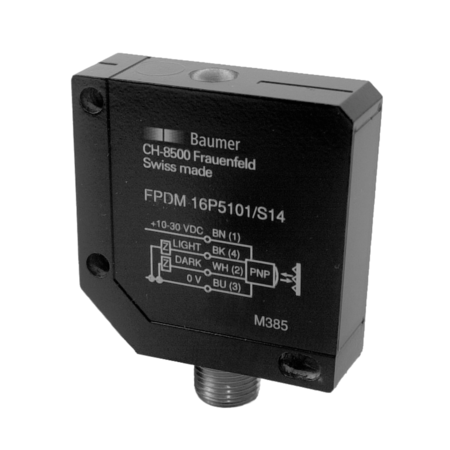

Baumer 10232272 Retro-Reflective Sensors FPDM 16N5101/S14

Product Description

The BAUMER 10232272 is a retro-reflective sensor with pulsed red LED light source and a nominal range of 8.5 meters and an actual range of 7.3 meters. It features a polarization filter and a flashing light indicator. Designed to suppress reciprocal influence and offers a quick response time of less than 1 ms.

• Retro-reflective sensor
• Pulsed red LED
• Actual range Sb: 7,3 m

Product Highlights

Retro-reflective sensor with pulsed red LED, polarization filter, and quick response time. Ideal for object and position detection.

Product Information

Standard Information

• Brand: BAUMER
• Manufacturer Part Number: 10232272
• Country of Origin: South Korea

Technical Specifications

• Type: Retro-reflective sensor
• Light source: Pulsed red LED
• Actual range Sb: 7.3 m
• Nominal range Sn: 8.5 m
• Polarization filter: Yes
• Alignment / soiled lens indicator: Flashing light indicator
• Light indicator: LED yellow
• Sensitivity adjustment: No
• Wave length: 660 nm
• Suppression of reciprocal influence: Yes
• Response time / release time: < 1 ms
• Voltage supply range +Vs: 10 30 VDC
• Current consumption max. (no load): 36 mA
• Current consumption typ.: 26 mA
• Voltage drop Vd: <1.8 VDC
• Output function: Light / dark operate
• Output circuit: NPN
• Output current: 200 mA
• Short circuit protection: Yes
• Reverse polarity protection: Yes
• Width / diameter: 15.4 mm
• Height / length: 50 mm
• Depth: 50 mm
• Design: Rectangular
• Housing material: Die-cast zinc
• Front (optics): PMMA
• Connection types: Connector M12 4 pin
• Operating temperature: -25 +65 C
• Protection class: IP 67
• Primary brand: Baumer
• Main function: Sensor (Photo-electric)
• Product series / family name: Retro-reflective sensors
• Sub-range name: FPDM series
• Functions: Photo-electric sensor with retro-reflective system and polarization filter suppression of reciprocal influence
• Supply voltage (DC): 10-30Vdc (12Vdc - 24Vdc nom.)
• Sensing distance: 7.3m / 7.3mm (actual range Sb) 8.5m / 8500mm (nominal range Sn)
• Light Color: Red
• Shape: Rectangular body
• Connection type: Pre-equipped with 4-pin M12 connector
• Protection functions: Short-circuit protection reverse polarity protection
• Operating mode: Light / Dark-operate
• Digital outputs: 1 x digital output (NPN; 200mA)
• Response time: <1ms / 0.001 s
• Degree of protection: IP67
• Dimensions: W15.4mm x H50mm x D50mm
• Material: die-cast zinc (housing) PMMA (optics)
• Ambient air temperature for operation: -25...+65 C
• Visual position indicator: yellow LED
• Flashing light (soiled lens / disalignment): None
• Current consumption: 36mA / 0.036 A
• Order code / Manufacturer SKU: FPDM 16N5101/S14
• Manufacturer product status: Commercialized
• Alternate Part Number: 10232272
• Series: FPDM
• Sensing Method: Retroreflective
• All - Specific Ratings: IP67
• Connection: M12,4 Pin
• Size: Width 15.4 mm x Length 50 mm x Depth 50 mm
• NPN or PNP: NPN
• Type of Photoelectric: General Purpose Photoelectric
